VRF J-III are energy-efficient air conditioners designed for single-family houses, small offices and commercial facilities.



Thanks to the technologies used, in addition to its basic functions, which ensure comfort of use, the air conditioner has a series of other functions, such as individual temperature control in each room and central control.

  • 5-year warranty
  • One outdoor unit max. 13 indoor units
  • Wi-Fi communication
  • Quiet operation
  • Individual temperature control for each indoor unit
  • Long piping length

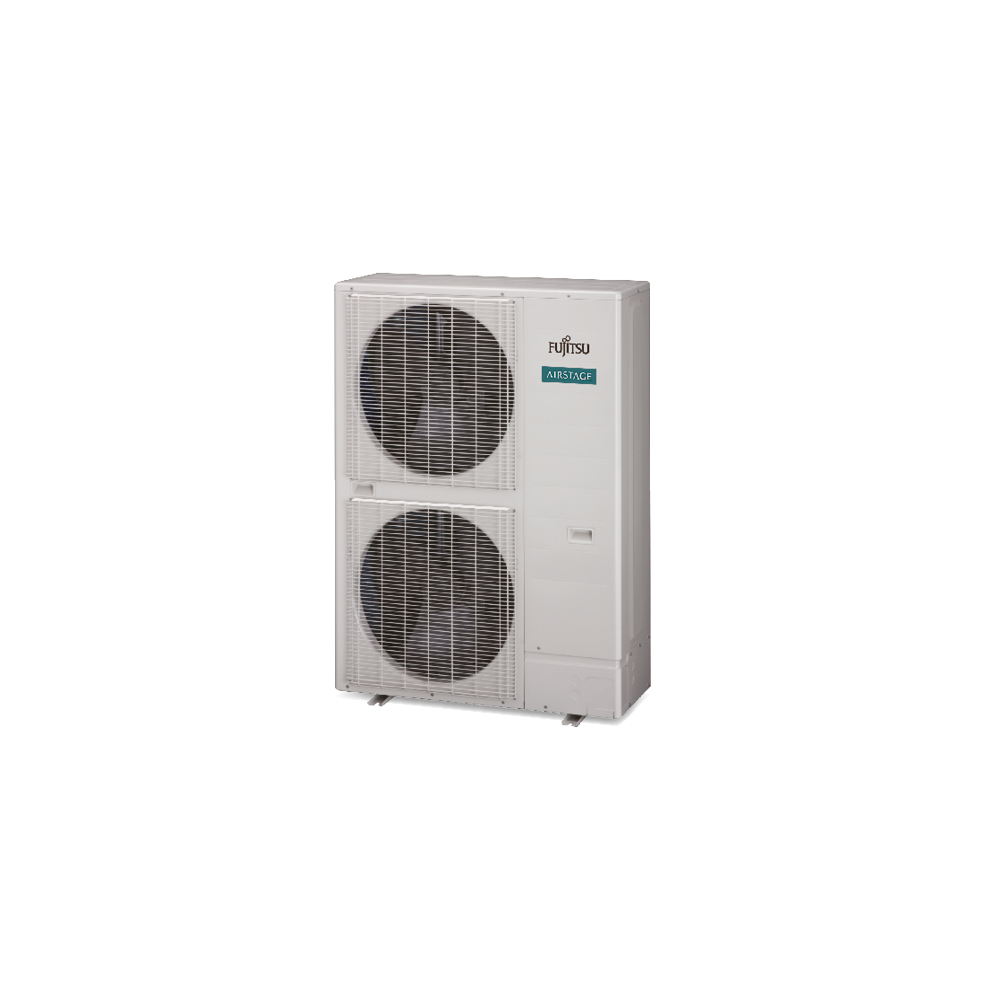

VRF Airstage system, J-III, mini VRF
  • Rated cooling capacity: 12,1 - 15,5 kW
  • Rated heating capacity: 13,6 – 18,0 kW
  • Number of indoor units drom 1 to 13
  • Co-operation with AHU's cooling modules
  • Capacity ratio 50-150%
  • Piping length from first separation tube to the furthest indoor unit: 180 m
  • The longest pipe in a system: 120 m
  • Height difference between indoor and outdoor units: 50 m
  • Refrigerant: R410A
  • High EER / COP coefficients
  • Energy efficiency class „A”
  • Wide range of operating temperatures, cooling and heating capacity
  • Recommended operating temperature in cooling mode: - 5÷46?C
  • Recommended operating temperature in heating mode: - 20÷21?C
  • Indoor units,  control and monitoring software  compatible with all AIRSTAGE   VRF systems
  • Automatic addressing of devices in the system
  • Work mode: auto, cooling, heating, drying, ventilation
  • The possibility of & nbsp; cooling or heating the object
  • Air-flow rate adjustment with use of the controller
  • Compact and slim outdoor units
  • Low noise operation jednostki zewn?trznej
  • High system reliability
  • Any configuration of types and nominal powers  indoor units from 1,1 to 14 kW
  • Flexibility in design and installation
  • The ability to control indoor units with wireless or wired remote control and central controllers
  • Simple and fast installation thanks to finished parts of the refrigeration system
  • Control options: individual, group and central
  • Ability to connect to BMS (LonWORKS, BacNet, Modbus)
  • Control and service software
  • Remote monitoring
  • Cooperation with the solar collector system SOLAR COOL
  • Certifications: EUROVENT, PZH,
Technical specifications

Model jedn. zewn.

Ilość jedn. Wewn.

EER

COP

Wydajność

C/G

Pobór mocy

C/G

Zasilanie

Wymiary

Masa

Ładunek czynnika







kW

kW

V/pH/Hz

mm

kg

kg (CO2eq-T)

AJY040LBLAH

9

4,17

4,86

12,1

13,6

2,9

2,8

230/1/50

1334x970x370

117

4,8 (10,0)

AJY045LBLAH

10

3,92

4,51

14,0

16,0

3,57

3,55

230/1/50

1334x970x370

117

5,3 (11,1)

AJY054LBLAH

13

3,71

4,23

15,5

18,0

4,18

4,26

230/1/50

1334x970x370

117

5,3 (11,1)

AJY040LELAH

9

4,33

5,01

12,1

13,6

2,79

2,71

400/3/50

1334x970x370

119

4,8 (10,0)

AJY045LELAH

10

4,05

4,70

14,0

16,0

3,46

3,40

400/3/50

1334x970x370

119

5,3 (11,1)

AJY054LELAH

13

3,88

4,41

15,5

18,0

3,99

4,08

400/3/50

1334x970x370

119

5,3 (11,1)



Dane techniczne dotyczą wybranych modeli z oferty Klima-Therm. Producent stale udoskonala swoje wyroby – aby zweryfikować dane proszę skontaktować się z Autoryzowanym Dealerem. C - chłodzenie, G - grzanie, parametry przepływu powietrza podano dla najwyższej prędkości wentylatora. Nominalna wydajność chłodzenia i grzania wyznaczana jest dla następujących parametrów: tryb chłodzenia temp wew: 27 CDB / 19 CWB, temp zew: 35 CDB / 24 CWB oraz tryb grzania: temp wew: 20 CDB / 15 CWB, temp zew: 7 CDB / 6 CWB. Długość instalacji 7 m, przewyższenie 0 m
