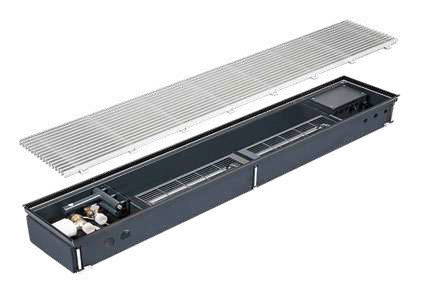

Carisma CCP-ECM floor fan coil unit is a combination of innovativeness, aesthetics and functionality in air conditioning systems.

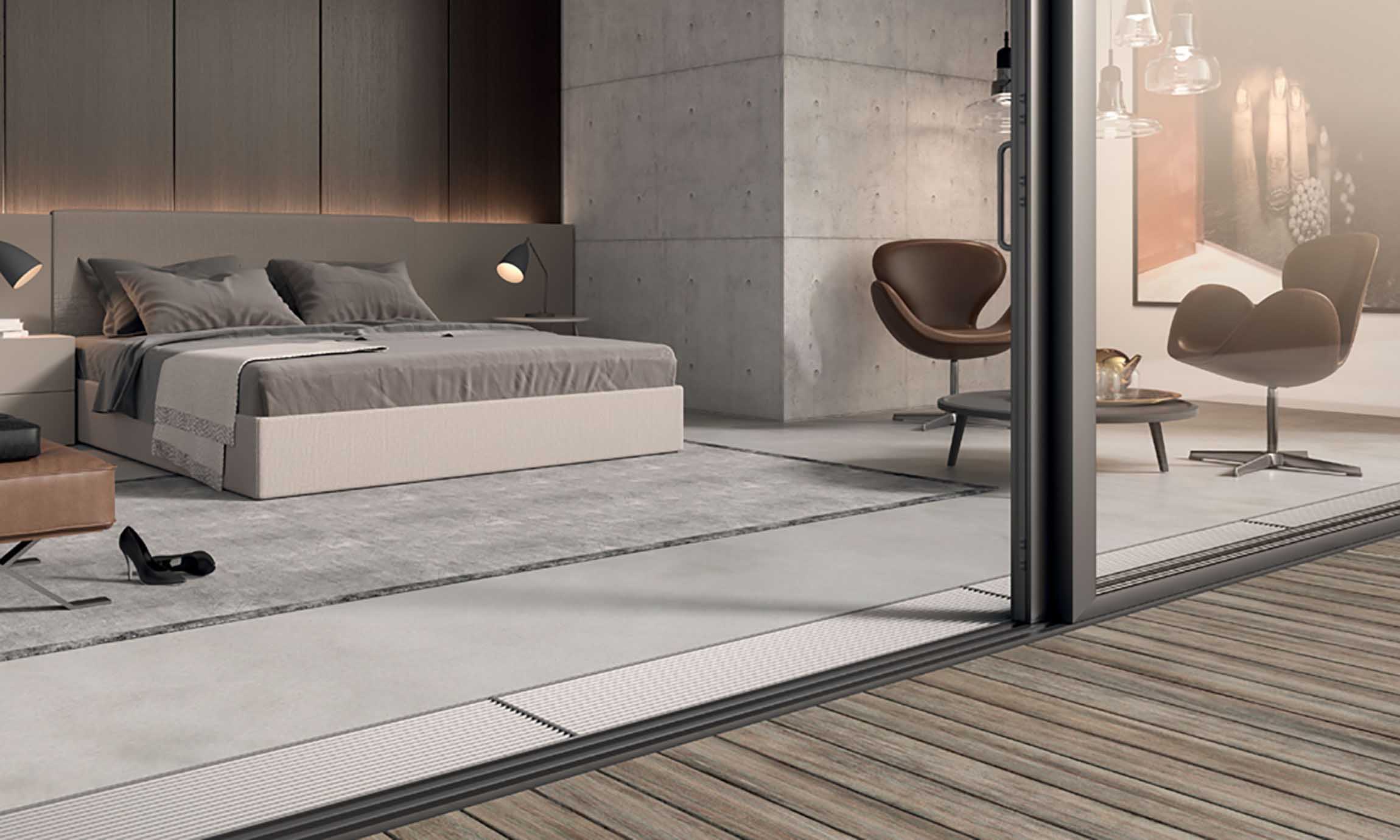

It is designed to efficiently heat, cool and ventilate buildings with large windows or doors. The wide range of models includes solutions which can be customised depending on architectural requirements. Floor fan coil units are used in private homes, on verandas, in public offices and commercial premises. All units are supplied with low energy consumption electronic engines. A large variety of control and regulation accessories is available.

Technical specifications

model	bieg	V	Qch	Qg		Lw	Lp
		m3/h	kW	kW		dB(A)	dB(A)
CCP–ECM 2T 1250-130-310	1	150	0,41	0,64		27	18
	2	250	0,77	1,12		37	28
	3	338	0,86	1,31		45	36
	4	414	1,03	1,57		51	42
CCP–ECM 2T 1250-130-360	1	150	0,51	0,79		27	18
	2	250	1,07	1,37		37	28
	3	338	1,19	1,62		45	36
	4	414	1,19	1,89		51	42
CCP–ECM 2T 1250-155-310	1	150	0,45	0,71		28	19
	2	250	0,88	1,17		39	30
	3	338	1,01	1,43		46	37
	4	414	1,07	1,66		52	43
CCP–ECM 2T 1250-155-360	1	150	0,53	0,86		28	19
	2	250	1,17	1,44		39	30
	3	338	1,32	1,72		46	37
	4	414	1,38	2,00		52	43
CCP–ECM 2T 2000-130-310	1	300	0,82	1,27		28	19
	2	500	1,53	2,23		39	30
	3	676	1,73	2,61		47	38
	4	828	2,06	3,14		53	44
CCP–ECM 2T 2000-130-360	1	300	1,02	1,59		28	19
	2	500	2,14	2,74		39	30
	3	676	2,38	3,25		47	38
	4	828	2,37	3,78		53	44
CCP–ECM 2T 2000-155-310	1	300	0,91	1,41		30	21
	2	500	1,76	2,35		40	32
	3	676	2,02	2,88		48	39
	4	828	2,13	3,33		54	45
CCP–ECM 2T 2000-155-360	1	300	1,06	1,73		30	21
	2	500	2,34	2,89		41	32
	3	676	2,63	3,44		48	39
	4	828	2,76	4,00		54	45
CCP–ECM 2T 2750-130-310	1	450	1,24	1,91		29	20
	2	750	2,31	3,35		41	32
	3	1014	2,59	3,92		48	39
	4	1242	3,09	4,72		54	45
CCP–ECM 2T 2750-130-360	1	450	1,53	2,38		29	20
	2	750	3,22	4,12		41	32
	3	1014	3,57	4,88		48	39
	4	1242	3,57	5,67	54		45
CCP–ECM 2T 2750-155-310	1	450	1,36	2,12		31	22
	2	750	2,65	3,52		42	33
	3	1014	3,03	4,30		49	40
	4	1242	3,20	4,99		55	46
CCP–ECM 2T 2750-155-360	1	450	1,59	2,59		31	22
	2	750	3,51	4,32		42	33
	3	1014	3,60	5,16		49	40
	4	1242	4,14	6,00		55	46
CCP–ECM 4T 1250-130-330	1	150	0,39	0,51		27	18
	2	250	0,67	0,90		37	28
	3	338	0,77	1,01		45	36
	4	414	0,94	1,16		51	42
CCP–ECM 4T 1250-130-360	1	150	0,44	0,63		27	18
	2	250	0,91	1,12		37	28
	3	338	1,02	1,28		45	36
	4	414	1,16	1,47		51	42
CCP–ECM 4T 1250-155-330	1	150	0,41	1,26		28	19
	2	250	0,81	2,13		39	30
	3	338	0,78	2,39		45	37
	4	414	1,05	2,72		52	43
CCP–ECM 4T 1250-155-360	1	150	0,46	0,64		28	19
	2	250	1,04	1,14		39	30
	3	338	1,08	1,31		46	37
	4	414	1,18	1,48		52	43
CCP–ECM 4T 2000-130-330	1	300	0,79	1,02		28	19
	2	500	1,33	1,80		39	30
	3	676	1,54	2,02		47	38
	4	828	1,87	2,32		53	44
CCP–ECM 4T 2000-130-360	1	300	0,89	1,26		28	19
	2	500	1,82	2,24		39	30
	3	676	2,04	2,57		47	38
	4	828	2,32	2,93		53	44
CCP–ECM 4T 2000-155-330	1	300	0,81	1,14		30	21
	2	500	1,63	1,91		41	37
	3	867	1,56	2,14		48	39
	4	828	2,11	2,45		54	45
CCP–ECM 4T 2000-155-360	1	300	0,92	1,29		30	21
	2	500	2,08	2,29		41	32
	3	676	2,16	2,63		48	39
	4	828	2,36	2,96		54	45
CCP–ECM 4T 2750-130-330	1	450	1,18	1,53		29	20
	2	750	2,00	2,70		41	32
	3	1014	2,32	3,02		48	39
	4	1242	2,80	3,48		54	45
CCP–ECM 4T 2750-130-360	1	450	1,33	1,89		29	20
	2	750	2,72	3,36		41	32
	3	1014	3,06	3,85		48	39
	4	1242	3,48	4,40		54	45
CCP–ECM 4T 2750-155-330	1	450	1,22	1,70		31	22
	2	750	2,44	2,87		42	33
	3	1014	2,33	3,22		49	40
	4	1242	3,16	3,68		55	46
CCP–ECM 4T 2750-155-360	1	450	1,37	1,94		31	22
	2	750	3,12	3,43		42	33
	3	1014	3,25	3,95		49	40
	4	1242	3,54	4,44		55	46

V- Wydajność powietrza [m3/h]

Qch- Wydajność chłodnicza całkowita [kW], Qg- Wydajność grzewcza [kW]

Zasilanie 230/1/50 V/Ph/Hz

Lp- Ciśnienie akustyczne chłodzenie [dB(A)], Lw- Moc akustyczna chłodzenie [dB(A)]
