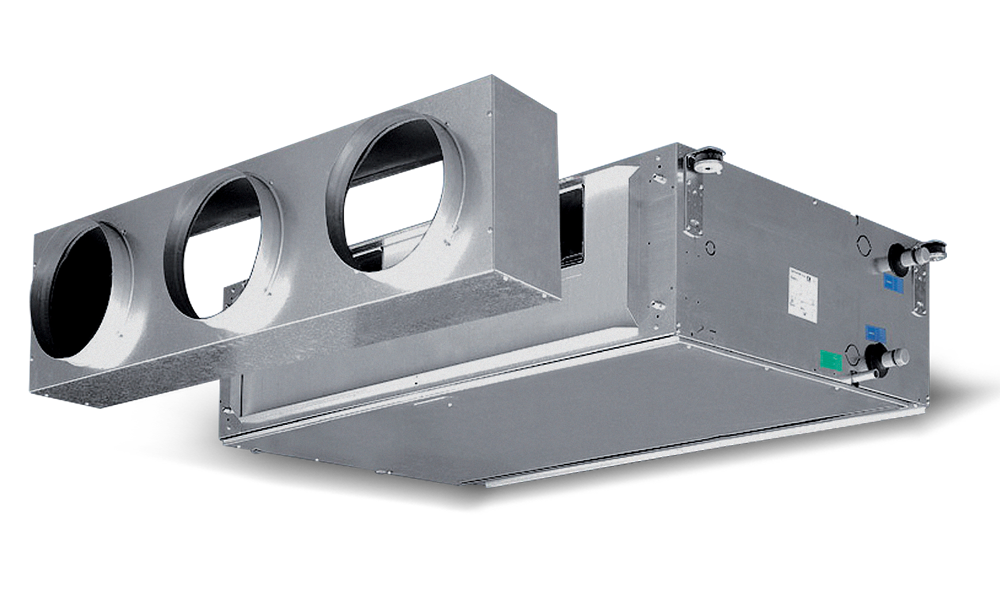

Maestro is a high-static ducted fan coil unit designed for chilled water systems.

Maestro MTL fan coil units are available in 7 sizes for built-in installation or for connection to duct systems. They offer compact dimensions, quiet operation and high available static pressure (up to 160 Pa for sizes 1–5 and up to 250 Pa for sizes 6–7). They come standard with a 4-row heat exchanger, with the option of a 3-row version or additional coils for 4-pipe systems. They are ideal for climate control in small and medium commercial or sports facilities, as well as large public spaces, integrating seamlessly with typical suspended ceiling systems.

High available static pressure up to 250 Pa
2-year warranty
Complete range of accessories for any installation
Wide selection of individual and central control options
Top-quality, durable materials
Option to connect ductwork

High-static ducted 2- and 4-pipe fan coil unit (up to 250 Pa) with an asynchronous motor

	MTL 13-53	MTL 14-54	MTL 13+1-53+1	MTL 14+1-54+1	MTL 64-76	MTL 64+2-76+2
Cooling capacity kW	4,05÷15,79	4,67÷18,93	3,92÷15,63	4,57÷18,80	13,83÷39,52	13,80÷39,28
Heating capacity kW	7,91÷31,42	8,76÷36,49	4,58÷16,73	4,49÷16,58	23,77÷73,68	22,28÷52,98

Housing made of galvanized steel (1–1.2 mm) with PO foam insulation, class B-s2-d0.
Dual-wheel, low-noise centrifugal fans with a 230 V single-phase motor.
Heat exchangers with copper tubes and aluminum fins.
Regenerable polypropylene filter in a steel frame.
Insulated galvanized steel condensate tray.
Fully compliant with EU regulation 327/2011 on low energy consumption.
Cooling/heat pump coils: three-, four- and six-row versions.
Heating coils: one- and two-row versions.
Wired and wireless control options.
Group control capability.
Operation within the SabiaNet system.

CONTROLS

COM • WM-3V • WM-T • WM-TQR • WM-AU+UPOM-AU/+UPO-AU • T-MB2+UPOM-AU/+UPO-AU
FOR MODELS WITH MB OPTION /// QCV-MB2 • PSM-DI • T-DI • SABWEB • SABIANET

Technical specifications

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL (2-pipe)	13	1	995	4,05	3,42	7,91	7	4,8	136	46	37
		3	1340	4,78	4,24	9,73	9,6	7,1	175	52	43
		5	1925	5,78	5,49	12,33	13,7	11	240	59	50
	23	1	855	4,32	3,29	7,75	8,7	5,1	180	47	38
		3	1550	6,14	5,08	11,92	16,9	11,4	273	57	48
		5	2510	7,9	7,12	16,44	27,4	20,9	340	64	55
	33	1	1815	7,43	6,02	14,27	18,7	12,3	390	58	49
		3	2300	8,44	7,1	16,8	23,8	16,6	470	62	53
		5	2790	9,36	8,16	19,1	28,8	21,1	523	66	57
	43	1	2265	9,63	7,7	18,06	18,4	9,2	445	60	51
		3	2855	10,91	9,05	21,21	23,5	12,5	550	65	56
		5	3400	11,91	10,16	23,85	28	15,5	680	69	60
	53	1	2905	12,67	10,31	23,64	17,2	10,9	541	64	55
		3	3540	14,07	11,82	27,14	21,2	14,1	703	69	60
		5	4400	15,79	13,78	31,42	26,5	18,4	885	75	66
	64	1	2200	13,83	9,99	23,77	9	4,9	732	61	52
		2	3580	19,28	14,64	35,01	16,4	9,9	943	69	60
		3	5200	23,94	18,98	46,21	24,6	16,3	1437	76	67
	66	1	2190	16,28	11,25	26,09	11,6	5,7	715	61	52
		2	3570	23,47	16,9	39,57	22,2	12,1	933	69	60
		3	5170	29,89	22,32	53,27	34,8	20,6	1414	76	67
	74	1	3960	21,45	16,04	39,61	14,6	8,6	1666	68	59
		2	5210	25,55	19,66	48,83	19,8	12,5	1879	74	65
		3	7480	31,22	25,14	63,38	29,1	20	2803	81	72
	76	1	3960	26,09	18,44	44,57	18,6	9,9	1666	68	59
		2	5210	31,62	23,02	55,84	26,1	14,8	1879	74	65
		3	7435	39,52	29,94	73,68	39,5	24,4	2764	81	72

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL (2-pipe)	14	1	940	4,67	3,72	8,76	6	3,9	130	46	37
		3	1315	5,71	4,79	11,22	8,8	6,1	173	52	43
		5	1835	6,84	6,09	14,2	12,4	9,5	232	59	50
	24	1	855	5,04	3,7	8,77	6,7	3,7	180	47	38
		3	1535	7,63	5,82	13,76	13,5	8,6	268	57	48
		5	2360	9,39	7,95	18,71	21,4	15,2	340	64	55
	34	1	1795	8,94	6,9	16,43	16,3	9,9	380	58	49
		3	2265	10,24	8,17	19,5	21	13,7	464	62	53
		5	2745	11,43	9,4	22,36	25,8	17,7	520	66	57
	44	1	2245	11,47	8,79	20,86	14,6	8,7	445	60	51
		3	2820	13,12	10,38	24,69	18,8	12	550	65	56
		5	3340	14,38	11,68	27,9	22,6	15,1	680	69	60
	54	1	2885	14,99	11,63	27,08	13,5	8	536	64	55
		3	3505	16,8	13,41	31,31	16,8	10,6	689	69	60
		5	4330	18,93	15,63	36,49	21,2	14	868	75	66
	64	1	1880	12,42	8,88	20,86	7,4	3,9	574	63	54
		2	3358	18,73	14,16	33,52	15,3	9,1	778	71	62
		3	4800	22,89	17,98	43,6	22,6	14,7	1304	77	68
	66	1	1860	14,36	9,84	22,58	9,2	4,4	565	63	54
		2	3350	22,59	16,2	37,53	20,5	11	759	71	62
		3	4740	28,28	20,91	49,77	31,4	18,2	1314	77	68
	74	1	3925	21,54	16,05	39,34	14,4	8,5	1518	71	62
		2	5070	25,33	19,46	47,85	19,3	12,1	1758	75	66
		3	7100	30,63	24,53	61,14	27,6	18,8	2460	81	72
	76	1	3920	26,09	18,49	44,2	18,3	9,7	1499	71	62
		2	5050	31,17	22,66	54,45	25,1	14,2	1737	75	66
		3	7030	38,42	28,96	70,64	37,1	22,6	2410	81	72

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL (4-pipe)	13+1	1	940	3,92	3,28	4,58	6,6	13,7	130	46	37
		3	1315	4,74	4,18	5,51	9,4	19,2	173	52	43
		5	1835	5,64	5,3	6,58	13,2	26,5	232	59	50
	23+1	1	855	4,32	3,29	4,78	8,7	15,9	180	47	38
		3	1535	6,11	5,05	6,76	16,8	29,8	268	57	48
		5	2360	7,66	6,83	8,44	25,8	44,8	340	64	55
	33+1	1	1795	7,38	5,97	8,07	18,4	18,4	380	58	49
		3	2265	8,37	7,03	9,12	23,5	23	464	62	53
		5	2745	9,3	8,07	10,08	28,4	27,5	520	66	57
	43+1	1	2245	9,58	7,65	10,53	18,3	32,4	445	60	51
		3	2820	10,84	8,97	11,93	23,2	40,8	550	65	56
		5	3340	11,8	10,04	13,04	27,5	47,8	680	69	60
	53+1	1	2885	12,61	10,26	13,42	17,1	30	536	64	55
		3	3505	14,01	11,76	14,92	21	36,4	689	69	60
		5	4330	15,63	13,62	16,73	26,1	44,6	868	75	66

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL (4-pipe)	14+1	1	910	4,57	3,62	4,49	5,8	15,3	127	46	37
		3	1290	5,65	4,72	5,46	8,6	21,8	170	52	43
		5	1775	6,75	5,96	6,47	12	29,6	226	59	50
	24+1	1	850	5,03	3,69	4,76	6,6	15,7	176	47	38
		3	1520	7,32	5,77	6,73	13,4	29,6	262	57	48
		5	2285	9,23	7,77	8,3	20,7	43,5	330	64	55
	34+1	1	1780	8,9	6,86	8,03	16,1	18,2	375	58	49
		3	2235	10,17	8,1	9,07	20,7	22,7	458	62	53
		5	2700	11,32	9,29	9,99	25,4	27,1	515	66	57
	44+1	1	2225	11,42	8,74	10,5	14,5	32,2	440	60	51
		3	2790	13,04	10,3	11,86	18,6	40,3	542	65	56
		5	3295	14,29	11,58	12,95	22,3	47,2	670	69	60
	54+1	1	2865	14,93	11,58	13,37	13,4	29,7	530	64	55
		3	3475	16,74	13,34	14,85	16,7	36,1	678	69	60
		5	4265	18,8	15,48	16,58	20,9	44,1	851	75	66

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL (4-pipe)	64+2	1	2190	13,8	9,97	22,28	9	14,7	715	61	52
		3	3570	19,24	14,61	31,16	16,3	27	933	69	60
		5	5150	23,81	18,87	39,42	24,3	41,2	1400	76	67
	66+2	1	2180	16,21	11,2	22,21	11,5	14,7	708	61	52
		3	3570	23,47	16,9	31,16	22,2	27	933	69	60
		5	5125	29,75	22,2	39,27	34,4	40,9	1382	76	67
	74+2	1	3960	21,45	15,95	35,74	14,6	24,1	1666	68	59
		3	5210	25,55	19,66	42,78	19,8	33,3	1879	74	65
		5	7410	31,16	25,06	53,25	28,9	49,3	2743	81	72
	76+2	1	3960	26,09	18,44	35,74	18,6	24,1	1666	68	59
		3	5210	31,62	23,02	42,78	26,1	33,3	1879	74	65
		5	7355	39,28	29,73	52,98	38,9	48,9	2698	81	72

MEASUREMENT CONDITIONS /// Cooling: ambient temperature +27/+19°C d.b./w.b., water parameters +7/+12°C E.W.T/L.W.T /// Heating: ambient temperature +20°C, water parameters +70/+60°C E.W.T/L.W.T
/// The sound pressure level is 9 dB(A) lower than the sound power level under reverberant field conditions in a 100 m3 room with a reverberation time of 0.5 s.

V – Airflow rate [m3/h]
Qch – Total cooling capacity [kW]
Qchj – Sensible cooling capacity [kW]
Qg – Heating capacity [kW]
Δpch – Cooling pressure drop [kPa]
Δg – Heating pressure drop [kPa]
Nel – Electrical power input [W]
Lw – Sound power level outlet [dB(A)]
Lp – Sound pressure level outlet [dB(A)]
