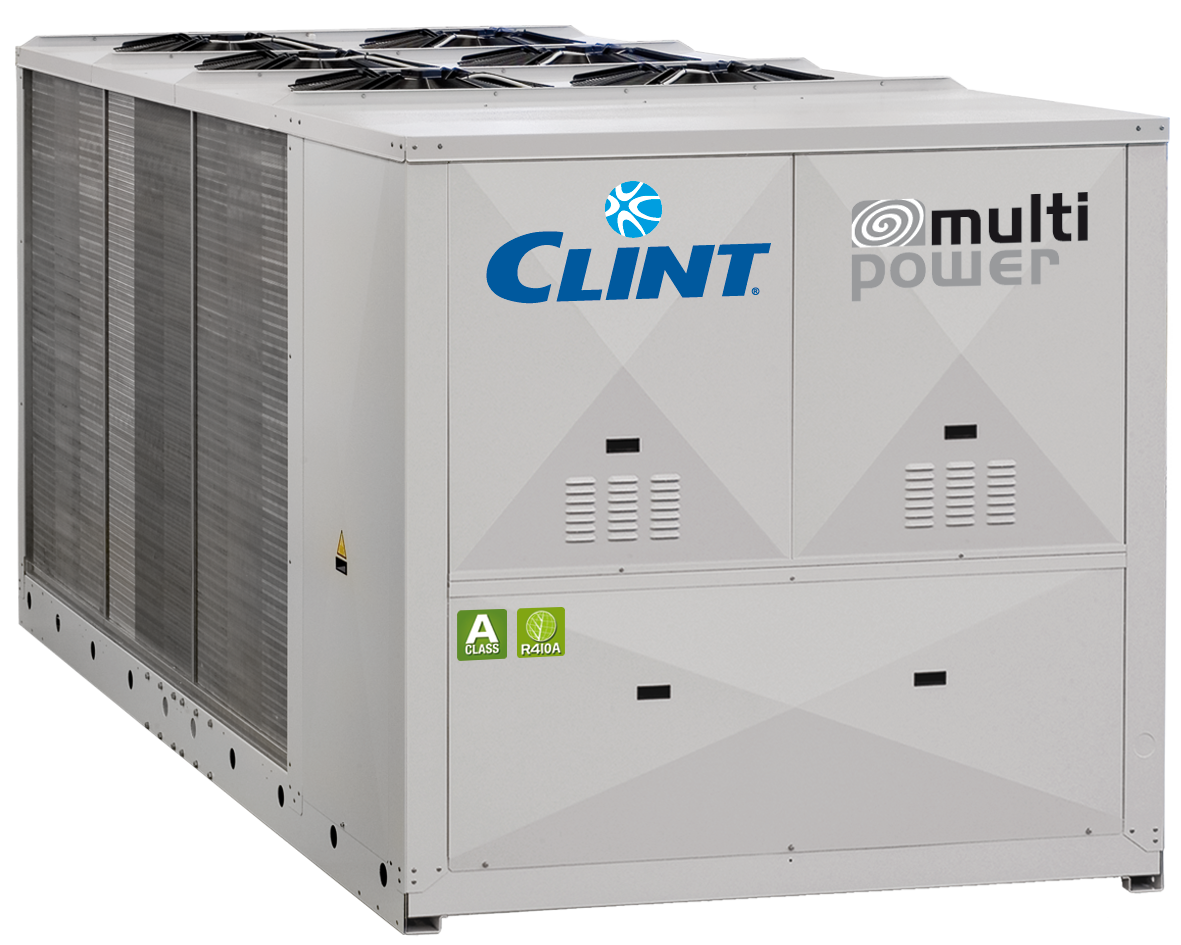

The liquid Chillers and Heat Pumps are characterized by A CLASS energy efficiency. The units are characterized by multi-compressor design on double cooling circuit, to reach high energy performances, reduction of current at start-up, elimination of inertial tanks and excellent silent functioning.The units are compliant to the ErP Regulation.
Units with the refrigeration system containing R410A (GWP 2088) refrigerant.
Units with high energy efficiency confirmed by the EER and ESEER ratios in class A.
Scroll compressor with an oil sight glass. Installed with internal overheating protection and, if required, with a crankcase heater, fitted on rubber vibration dampers.
Axial fans directly coupled to a three phase electric motor and external rotor, equipped with a grille protecting the fan located at the air outlet.
Units in the cooling/heating version operate using the heat pump function. They can cool or heat water, chilled water or air.
The units in the cooling-only version provide the basic function of cooling water, chilled water or air, while other functions are optional.
Plate heat exchanger made of AISI 316 stainless steel, soldered, with one cooling circuit and one water circuit or with two independent cooling circuits and one water circuit.
Units with the refrigeration system containing R454B (GWP 466) refrigerant.
Units with the refrigeration system containing R452B (GWP 675) refrigerant.
|
Model
|
EEC C/H
|
SEER SCOP
|
Capacity C/H
|
Absorbed power C/H
|
Electric power supply
|
Dimensions
|
Weight
|
Refrigerant charge Cooling only/ Heat pump |
| kW | kW | V/pH/Hz | mm | kg | kg (CO2eq-T) | |||
| CHA/K/AF 726-P | A | 4,18 | 197 | 62 | 400/3/50 | 4000x2200x2100 | 1854 | 2x29(2x60,552)/ |
| A | 3,35 | 214 | 65 | 2x34(2x70,992) | ||||
| CHA/K/AF 786-P | A | 4,19 | 220 | 69 | 400/3/50 | 4000x2200x2100 | 2171 | 2x34(2x60,552)/ |
| A | 3,42 | 239 | 73 | 2x38(2x79,344) | ||||
| CHA/K/AF 826-P | A | 4,23 | 245 | 76 | 400/3/50 | 4000x2200x2100 | 2289 | 2x35(2x73,080)/ |
| A | 3,35 | 266 | 81 | 2x39(2x81,432) | ||||
| CHA/K/AF 906-P | A | 4,24 | 271 | 83 | 400/3/50 | 4000x2200x2100 | 2317 | 2x35(2x73,080)/ |
| A | 3,34 | 295 | 88 | 2x39(2x81,432) | ||||
| CHA/K/AF 1048-P | A | 4,20 | 300 | 95 | 400/3/50 | 5000x2200x2100 | 2437 | 2x35(2x73,080)/ |
| A | 3,37 | 325 | 99 | 2x39(2x81,432) | ||||
| CHA/K/AF 1128-P | A | 4,20 | 329 | 105 | 400/3/50 | 5000x2200x2100 | 2680 | 2x37(2x77,256)/ |
| A | 3,34 | 359 | 109 | 2x41(2x85,608) | ||||
| CHA/K/AF 1208-P | A | 4,21 | 361 | 111 | 400/3/50 | 5000x2200x2100 | 2690 | 2x40(2x83,520)/ |
| A | 3,35 | 391 | 119 | 2x45(2x93,960) | ||||
| CHA/K/AF 13010-P | A | 4,48 | 396 | 124 | 400/3/50 | 5000x2200x2100 | 2869 | 2x42(2x87,696)/ |
| A | 3,36 | 431 | 129 | 2x46(2x96,048) | ||||
| CHA/K/AF 15010-P | A | 4,56 | 435 | 137 | 400/3/50 | 5000x2200x2100 | 3004 | 2x43(2x89,784)/ |
| A | 3,32 | 473 | 143 | 2x48(2x100,224) | ||||
| CHA/K/AF 16812-P | A | 4,59 | 485 | 154 | 400/3/50 | 6200x2200x2100 | 3512 | 2x52(2x108,576)/ |
| A | 3,36 | 526 | 162 | 2x57(2x119,016) | ||||
| CHA/K/AF 18012-P | A | 4,57 | 538 | 169 | 400/3/50 | 6200x2200x2100 | 3642 | 2x52(2x108,576)/ |
| A | 3,31 | 586 | 176 | 2x58(2x121,104) | ||||
| CHA/K/AF 21012-P | A | 4,56 | 609 | 192 | 400/3/50 | 7200x2200x2100 | 4420 | 2x62(2x129,456)/ |
| A | 3,33 | 663 | 202 | 2x67(2x139,896) | ||||
| CHA/K/AF 24012-P | A | 4,6 | 692 | 220 | 400/3/50 | 7200x2200x2100 | 4458 | 2x63(2x131,544)/ |
| A | 3,43 | 754 | 231 | 2x72(2x150,336) |
Technical data refer to selected models from the Klima-Therm offer. The manufacturer is constantly improving its products – to verify the data, please contact an Authorized Dealer. C - cooling, G – heating. Cooling capacity- Chilled water from 12 to 7 °C, ambient temperature 35°C; Heating capacity- heating water 40°/45°C, ambient temperature 7°C, *EN 14511
