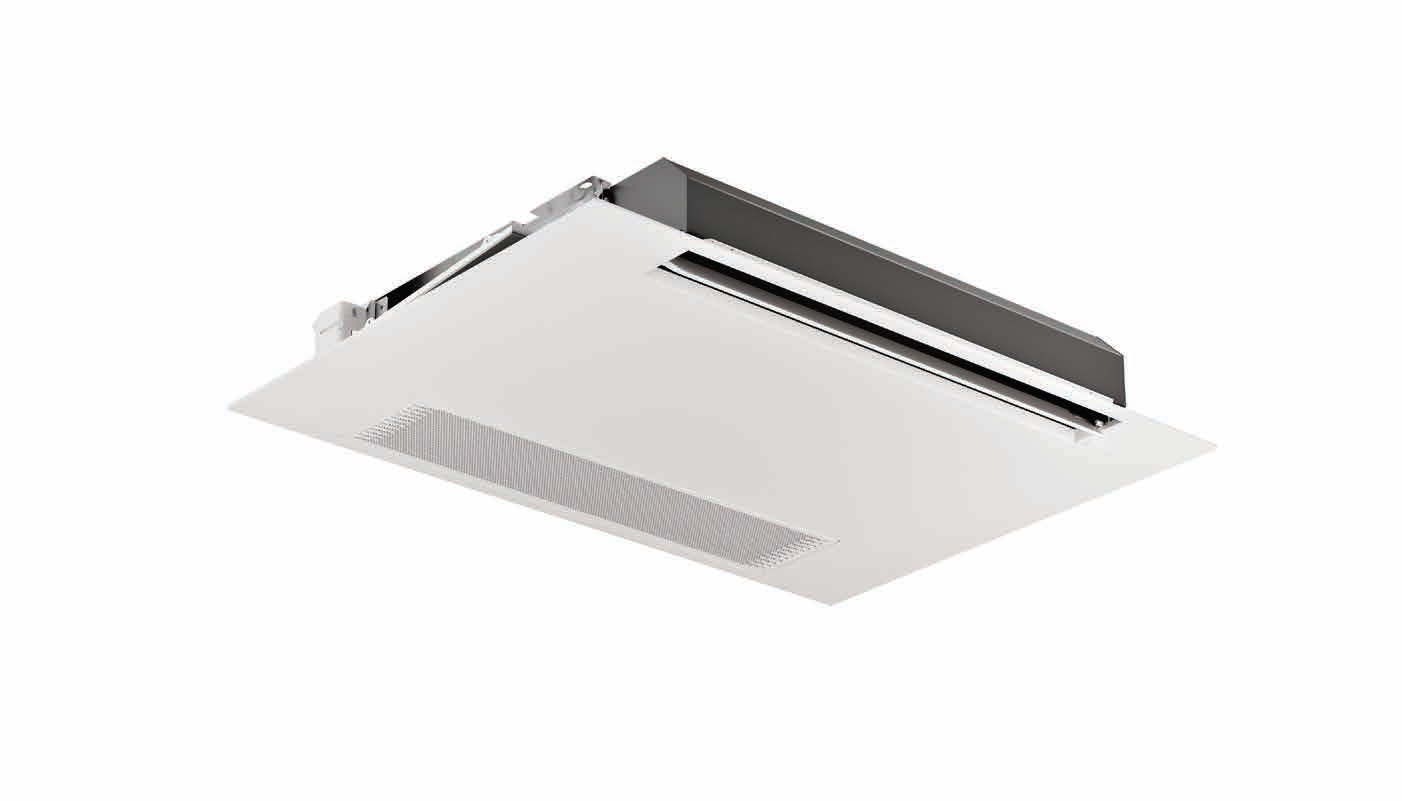

Carisma Whisper CFF-ECM-OW is a one-way cassette perfect to meet all air-conditioning requirements of residential and work environments like offices, shops, restaurants and hotel rooms

The Carisma Whisper CFF-ECM-OW fan coil unit combines a reduced dimension with a modern aesthetic,while maintaining great performances in terms of sound and consumption. Its overall reduced height and the limited weight allow an easy installation into the false ceilings with limited height, allowing lower installation costs rooms with greater living height buildings with several floors at the same living height. Its wide motorized flap allows a wide air distribution inside the room. The excellent values in terms of sound levels have been maintained in all working conditions, without any resonance phenomenon at any frequency.

  • Wide range of individual and central control Options
  • 2-year warranty
  • Highest quality and durability of materials
  • Synchronous inverter driven BLAC brushless and sensorless electronic motor
Fan Coil Unit with Tangential Fan with Synchronous inverter driven BLAC Brushless Electronic Motor
  • Rated cooling capacity: 0,48 ÷ 3,36 kW (E.A.T.+27℃/E.W.T. +7℃)
  • Rated heating capacity: 0,60 ÷ 3,62 kW (E.A.T. +20℃/E.W.T.+45℃)
  • Tangential fan with anti-vibration fins
  • Wired and wireless control
  • Group control
  • Work in the SabiaNet system
  • Sabiana WiFi • Sabiana BLE
  • T-MB2 • PSM-DI • RT03 / RR03 • T-DI • SabWeb • Sabianet
Technical specifications

model

speed

V

Qch

Qg

Δpch

Δpg

Nel

Lw

Lp





m³/h

kW

kW

kPa

kPa

W

dB(A)

dB(A)

CFF-ECM-OW 10

min.

90

0,48

0,60

6,0

6,7

3,5

33

24

med.

130

0,66

0,78

9,1

9,6

5,2

40

31

max.

205

0,92

1,10

14,7

16,2

10,3

50

41

CFF-ECM-OW 20

min.

145

0,83

1,01

3,6

3,9

4,0

33

24

med.

205

1,15

1,32

4,9

5,0

6,3

42

33

max.

305

1,62

1,81

7,4

7,3

14,0

52

43

CFF-ECM-OW 30

min.

225

1,08

1,62

5,4

7,7

4,8

34

25

med.

315

1,91

2,10

11,5

11,0

8,6

43

34

max.

470

2,61

2,90

18,6

18,2

21,6

53

44

CFF-ECM-OW 40

min.

260

1,45

1,91

10,2

12,9

12,9

37

28

med.

380

2,50

2,58

23,7

20,6

20,6

45

36

max.

575

3,36

3,62

39,1

36,2

36,2

55

46



V- Air flow [m3/h]

Qch- Cooling total emission [kW], Qg- Heating [kW]

Δpch- Dp Cooling [kPa], Δpg- Dp Heating [kPa]

Nel- electric power [W], power supply 230/1/50 V/Ph/Hz

Lp- Sound pressure [dB(A)], Lw- Sound power [dB(A)]
