The Carisma CRC series of fan coil units meets user requirements relating to capacity, size, acoustics, low energy consumption, and ease of installation and maintenance.

The Carisma CRC fan coil units are available in a range of models and accessories that have been independently tested and certified by Eurovent. The CRC series consists of 5 different models, including wall and ceiling-mounted, cased or recessed versions and models with the option of centrifugal fans. This is the most comprehensive range of fan coil units available on the market today.

Wide range of individual and central control Options
2-year warranty
Vertical and horizontal installation possible
Highest quality and durability of materials
High external static pressure
Duct system connection possible

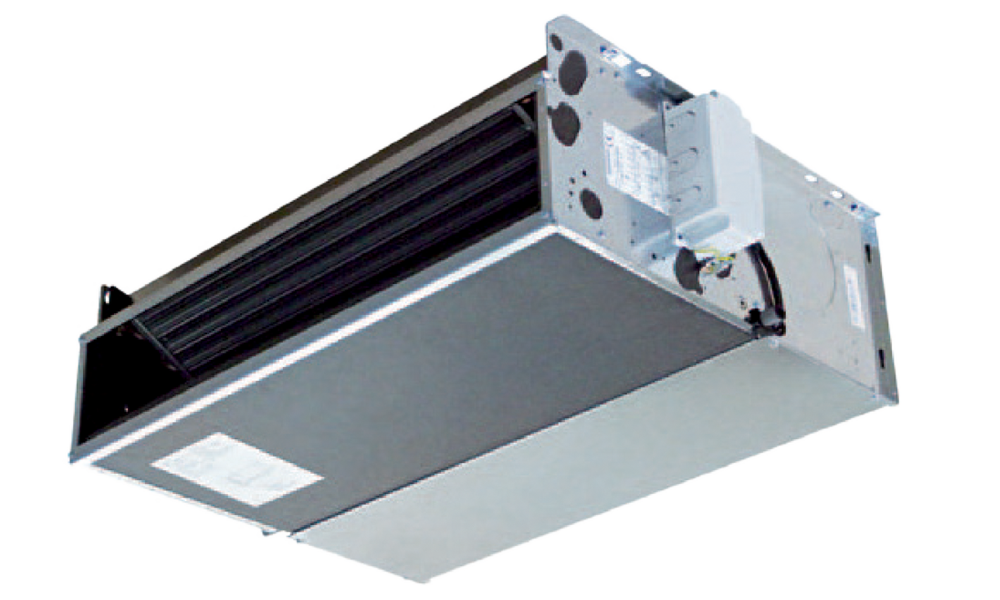

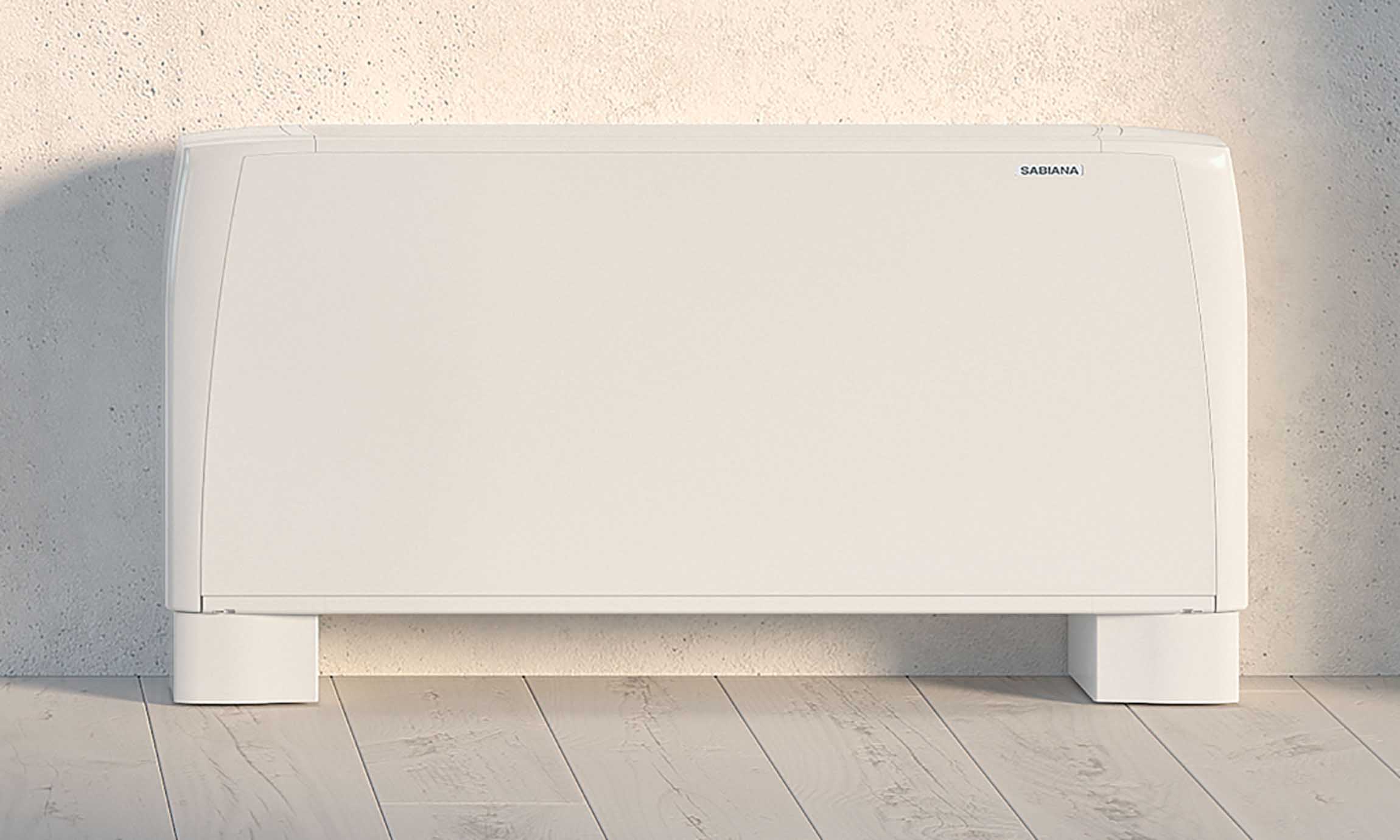

Fan Coil Unit with Centrifugal Fan with Asynchronous Motor

Rated cooling capacity: 1,03 ÷ 7,6 kW (E.A.T.+27oC/E.W.T. +7oC)
Rated heating capacity: 1,39 ÷ 10,08 kW (E.A.T. +20oC/E.W.T.+50oC)
Cooling exchangers / heat pump: three or four-row
Heat exchangers: single or double row
Housing and without housing version
Vertical and horizontal installation
Centrifugal fans
Wired and wireless control
Group control
Work in the SabiaNet system

All Carisma CRC fan coil units with centrifugal fans are equipped with electric engines that significantly reduce energy consumption (up to 40% compared to previous models). They have 6-speed engines as standard, thus offering better flexibility in the selection of products.

The fact that the Carisma CRC fan coil can be equipped with the Crystall system, with a D class electrostatic filter with the UNI 11254 standard. The solution is equal to the traditional mechanical filter to F9, but it is distinguished by the lack of a sudden effect on static pressure. Full compatibility is available with the fastest use of the unit. It is characterized by the highest precision in monitoring and maintaining the desired comfort conditions.

The Carisma model is supplemented with additional accessories such as an electric heating battery, air inlet / outlet diffusers and condensate pump.

CONTROLS

FOR MV-MVB /// CB • CB-T • CB-C • CB-AUT
FOR MV, MO-MVB, IV.IO /// WM-3V • WM-T • WM-TQR • WM-AU + UP-AU/UPM-AU • T-MB + UP-AU/UPM-AU • TMO-503-SV2 • T2T
FOR UNITS WITH MB BOARD /// T-MB • RM-RT03 • RM • RS • RT03 • FREE SABIANA • SABIANET

Technical specifications

model	speed	V	Qch	Qchj	Qg	Qg	Δpch	Δpg	Nel	Lw	Lp
model	speed	V	Qch	Qchj	Qg	70/60°C	Δpch	Δpg	Nel	Lw	Lp
		m3/h	kW	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
CRC 13	min.	105	0,57	0,45	0,64	1,31	2,5	0,9	16	32	23
	med.	175	0,84	0,69	0,98	1,99	4,7	1,8	25	39	30
	max.	220	1	0,83	1,19	2,42	6,3	2,5	33	45	36
CRC 23	min.	145	0,9	0,68	0,94	1,9	2,5	2,2	14	30	21
	med.	220	1,23	0,95	1,34	2,7	4,4	4,2	22	40	31
	max.	295	1,53	1,21	1,7	3,44	6,5	6,4	32	47	38
CRC 33	min.	235	1,55	1,13	1,56	3,14	9,4	7,8	20	36	27
	med.	270	1,76	1,3	1,79	3,61	11,8	10	25	40	31
	max.	385	2,35	1,76	2,44	4,92	19,7	17,1	41	49	40
CRC 43	min.	265	1,71	1,26	1,74	3,51	11,2	9,5	21	33	24
	med.	335	2,11	1,57	2,18	4,36	16,2	14	28	39	30
	max.	485	2,83	2,15	2,97	6	27,2	24,3	44	47	38
CRC 53	min.	315	2,01	1,49	2,02	4,07	5,8	4,8	22	31	22
	med.	495	2,9	2,19	3	6,04	11,1	9,6	39	41	32
	max.	650	3,58	2,76	3,75	7,57	16,2	14,2	61	48	39
CRC 63	min.	415	2,5	1,87	2,56	5,17	8,6	7,3	37	37	28
	med.	590	3,32	2,54	3,45	6,96	14,1	12,3	55	46	37
	max.	760	4,01	3,12	4,26	8,61	19,8	17,8	78	52	43
CRC 73	min.	535	3,29	2,45	3,34	6,72	16,2	13,5	54	42	33
	med.	735	4,21	3,19	4,33	8,73	25,1	21,3	79	51	42
	max.	925	5,01	3,85	5,23	10,55	34,2	29,7	103	56	47
CRC 83	min.	655	3,68	2,82	4,02	8,11	10,3	8,3	62	45	36
	med.	1020	5,09	4,02	5,75	11,63	18,4	15,6	105	56	47
	max.	1200	5,69	4,55	6,55	13,25	22,5	19,6	130	60	51
CRC 93	min.	830	4,38	3,4	4,86	9,82	13,8	16,2	92	50	41
	med.	1210	5,874	4,6	6,62	13,39	22,4	27,8	134	58	49
	max.	1500	6,56	5,55	9,06	15,74	28,6	37	176	64	55
model	bieg	V	Qch	Qchj	Qg	Qg	ΔPch	Δpg	Nel	Lw	Lp
model	bieg	V	Qch	Qchj	Qg	70/60°C	ΔPch	Δpg	Nel	Lw	Lp
		m3/h	kW	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
CRC 14	min.	105	0,65	0,49	0,69	1,38	1,9	1,7	16	32	23
	med.	175	1	0,77	1,07	2,15	4	3,7	25	39	30
	max.	220	1,2	0,94	1,31	2,63	5,6	5,3	33	45	36
CRC 24	min.	145	1	0,73	0,99	1,98	4,9	4	14	30	21
	med.	220	1,41	1,05	1,43	2,88	9,1	7,6	22	40	31
	max.	295	1,78	1,35	1,83	3,69	13,9	11,8	32	47	38
CRC 34	min.	235	1,63	1,18	1,62	3,23	5,3	4,2	20	36	27
	med.	270	1,87	1,36	1,87	3,73	6,7	5,4	25	40	31
	max.	385	2,53	1,86	2,59	5,14	11,5	9,8	41	49	40
CRC 44	min.	265	1,81	1,21	1,8	3,62	6,1	5	21	33	24
	med.	335	2,25	1,51	2,27	4,56	9	7,2	28	39	30
	max.	485	3,08	2,3	3,14	6,33	15,5	12,8	44	47	38
CRC 54	min.	315	2,17	1,58	2,1	4,23	10,4	8,1	22	31	22
	med.	495	3,21	2,36	3,16	6,37	20,8	16,6	39	41	32
	max.	650	4,03	3,01	4,01	8,07	31,3	25,2	61	48	39
CRC 64	min.	415	2,79	2,03	2,82	5,66	14,4	11,9	37	37	28
	med.	590	3,81	2,81	3,9	7,85	24,8	21,5	55	46	37
	max.	760	4,71	3,52	4,92	9,9	36,2	31,8	78	52	43
CRC 74	min.	535	3,51	2,57	3,49	7,02	12,5	10,1	54	42	33
	med.	735	4,56	3,39	4,62	9,3	20	16,9	79	51	42
	max.	925	5,48	4,13	5,59	11,26	27,7	23,2	103	56	47
CRC 84	min.	655	3,97	2,98	4,26	8,55	14	12,8	62	45	36
	med.	1020	5,63	4,33	6,27	12,52	26	24,9	105	56	47
	max.	1200	6,34	4,93	7,2	14,36	32,2	31,7	130	60	51
CRC 94	min.	830	4,79	3,63	5,23	10,55	10,6	10	92	50	41
	med.	1210	6,41	4,98	7,18	14,52	17,8	17,6	134	58	49
	max.	1500	7,42	5,87	8,52	17,23	23,2	23,7	176	64	55

MEASUREMENT CONDITIONS /// Cooling: ambient temp. +27/+19oC d.b./w.b., water parameters +7/+12oC E.W.T/L.W.T /// Heating: ambient temp. +20oC, water parameters +45°C E.W.T. +40°C L.W.T.
/// Sound pressure level is 9 dB(A) lower than the sound power level under reverberant field conditions in a 100 m3 room with 0.5 s reverberation time.

V- Air flow [m3/h]

Qch- Cooling total emission [kW], Qg- Heating [kW], QchJ- Cooling sensible emission [kW]

Δpch- Dp Cooling [kPa], Δpg- Dp Heating [kPa]

Nel- electric power [W], power supply 230/1/50 V/Ph/Hz

Lp- Sound pressure [dB(A)], Lw- Sound power [dB(A)]
