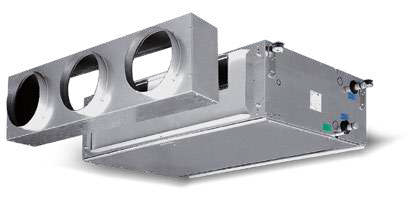

The Maestro MTL ECM fan coil units are designed for use in chilled water systems

The Maestro MTL ECM fan coil units are designed and manufactured for built-in installations, suspended ceilings, and ducted systems in residential, commercial, and sports buildings. They are characterized by compact dimensions, quiet operation, and an attractive price-to-performance ratio, achieving high airflow rates and an available static pressure of up to 160 Pa (sizes 1–5) and 240 Pa (size 6). Thanks to the ability to smoothly regulate airflow, the fan coil units provide precise control of environmental conditions and minimal energy consumption.

2-year warranty
Available static pressure up to 160 Pa (sizes 1–5) and 240 Pa (size 6)
Low energy consumption
Compact dimensions

High static pressure (up to 240 Pa) 2- and 4-pipe ducted fan coil unit with EC motor, and inverter board

	MTL-ECM13-53	MTL-ECM 14-64	MTL-ECM 66	MTL-ECM 13+1-53+1	MTL-ECM 14+1-54+1	MTL-ECM 14+2-64+2	MTL-ECM 66+2
Cooling capacity kW	3,00÷16,9	2,90÷26,11	14,00÷33,24	2,57÷16,80	2,71÷20,74	2,65÷26,58	13,72÷32,95
Heating capacity kW	3,42÷24,04	3,33÷32,77	13,37÷37,81	2,51÷15,93	2,36÷15,85	4,49÷37,50	16,22÷37,34

Coil versions: 3-, 4- or 6-row with optional additional coils for 4-pipe systems
Casing made of galvanized steel insulated with polyolefin foam
Renewable air filter
Insulated galvanized condensate tray

CONTROLS

WM-AU • T-MB2+UPOM-AU/UPO-AU
FOR MODELS WITH MB OPTION /// QCV-MB2 • T-DI • PSM-DI • SABIANET • SABWEB

Wide range of individual and group control options

Technical specifications

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL ECM (2-pipe)	13	1	505	3	2,37	3,42	4,5	4,3	10	35	26
		3	950	4,05	3,44	4,93	7,8	8,3	27	44	35
		5	1280	4,78	4,22	6,08	10,7	12,1	57	49	40
	23	1	640	3,7	2,78	3,97	6,4	5,4	12	39	30
		3	970	4,82	3,79	5,46	10,4	9,6	29	46	37
		5	1375	5,91	4,83	7,05	15,1	15,2	65	53	44
	33	1	760	4,54	3,36	4,75	6,6	5,3	13	41	32
		3	1190	6,05	4,71	6,71	11,1	9,9	30	48	39
		5	1750	7,57	6,16	8,89	16,9	16,5	83	56	47
	43	1	745	4,83	3,48	5,17	5	3,2	12	39	30
		3	1275	6,99	5,29	8,01	9,8	7,2	30	48	39
		5	1890	8,89	7,01	10,84	15,3	12,4	76	56	47
	53	1	1495	8,6	6,52	9,71	8,8	8,8	41	48	39
		3	2605	12,13	9,93	14,92	16,6	19,3	139	61	52
		5	3580	14,37	12,16	18,77	23,2	29,2	340	70	61

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL ECM (2-pipe)	14	1	460	2,9	2,16	3,33	2,5	2,4	10	35	26
		3	870	4,46	3,57	5,56	5,5	6,2	26	44	35
		5	1190	5,39	4,47	7,22	7,8	9,7	55	49	40
	24	1	620	4,09	2,97	4,51	4,5	4	12	39	30
		3	930	5,42	4,09	6,36	7,6	7,4	25	46	37
		5	1345	6,85	5,36	8,56	11,7	12,7	65	53	44
	34	1	740	5,13	3,67	5,19	5,3	4	13	41	32
		3	1170	7,09	5,29	7,57	9,6	8	30	48	39
		5	1720	9,08	7,03	10,23	15,1	13,8	85	56	47
	44	1	730	5,39	3,78	5,53	3,6	2,8	12	39	30
		3	1250	8,09	5,91	8,81	7,5	6,5	30	48	39
		5	1860	10,58	7,99	12,24	12,3	11,8	78	56	47
	54	1	1480	9,89	7,21	10,64	6,7	6,2	41	48	36
		3	2580	14,43	11,24	16,85	13,5	14,2	144	61	52
		5	3550	17,43	14	21,58	19,3	22,2	346	70	67
	64	1	1740	12,05	8,68	12,47	8,5	6,8	28	47,5	38,5
		3	2900	17,22	13,29	19,03	16,4	14,7	93	62	53
		5	3965	20,95	16,82	24,31	23,6	22,9	214	70	61
	66	1	1725	14	9,58	13,37	10,7	7,5	28	47,5	38,5
		3	2880	20,8	15,02	21,04	22,2	17,1	97	62	53
		5	3940	25,92	19,28	27,39	33,3	27,6	222	70	61

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL ECM (4-pipe)	13+1	1	460	2,57	1,98	2,51	3,4	5,3	10	35	26
		3	870	3,83	3,21	3,76	7,1	11,1	26	44	35
		5	1190	4,58	3,99	4,5	9,8	15,3	55	49	40
	23+1	1	620	3,62	2,71	3,36	6,1	8,6	12	39	30
		3	930	4,7	3,68	4,35	9,9	13,8	25	46	37
		5	1345	5,83	4,76	5,43	14,8	20,5	65	53	44
	33+1	1	740	4,45	3,29	4,03	6,4	5	13	41	32
		3	1170	5,98	4,65	5,4	10,9	8,5	30	48	39
		5	1720	7,49	6,08	6,78	16,6	12,9	85	56	47
	43+1	1	730	4,76	3,43	4,5	4,9	6,8	12	39	30
		3	1250	6,91	5,22	6,39	9,6	12,9	30	48	39
		5	1860	8,81	6,92	8,2	15,1	20,2	78	56	47
	53+1	1	1480	8,54	6,47	7,79	8,7	10,7	41	48	39
		3	2580	12,04	9,85	11,05	16,5	20,1	144	61	52
		5	3550	14,31	12,09	13,17	23	27,6	346	70	61

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL ECM (4-pipe)	14+1	1	420	2,71	2	2,36	2,2	4,8	10	35	26
		3	810	4,26	3,38	3,6	5,1	10,2	25	44	35
		5	1130	5,22	4,29	4,37	7,4	14,5	64	49	40
	24+1	1	600	4	2,89	3,29	4,3	8,3	12	39	30
		3	900	5,3	3,99	4,27	7,3	13,3	25	46	37
		5	1320	6,77	5,28	5,38	11,4	20,1	66	53	44
	34+1	1	710	4,97	3,54	3,92	5	4,8	13	41	32
		3	1150	7	5,21	5,34	9,4	8,3	31	48	39
		5	1690	8,97	6,93	6,73	14,8	12,6	87	56	47
	44+1	1	720	5,33	3,74	4,45	3,5	6,7	13	39	30
		3	1230	8	5,83	6,32	7,4	12,7	31	48	39
		5	1835	10,48	7,91	8,13	12,1	19,9	79	56	47
	54+1	1	1460	9,79	7,13	7,72	6	10,5	41	48	39
		3	2555	14,34	11,16	11	12,2	20	148	61	52
		5	3525	17,35	13,91	13,12	17,6	27,4	355	70	61

			V	Qch	Qchj	Qg	Δpch	Δg	Nel	Lw	Lp
MODEL		Speed	m3/h	kW	kW	kW	kPa	kPa	W	dB(A)	dB(A)
MTL ECM (4-pipe)	14+2	1	400	2,65	1,94	4,49	2,1	3,2	9	35	26
		3	740	4,08	3,2	7,16	4,7	7,4	24	44	35
		5	1055	5,11	4,16	9,16	7,1	11,6	52	49	40
	24+2	1	570	3,9	2,8	6,37	4,1	7	12	39	30
		3	865	5,24	3,92	8,75	7,1	12,5	26	46	37
		5	1285	6,78	5,26	11,61	11,4	20,9	67	53	44
	34+2	1	690	4,86	3,46	7,69	4,8	3,8	13	41	32
		3	1125	6,9	5,12	11,13	9,1	7,4	31	48	39
		5	1645	8,82	6,79	14,57	14,4	12	89	56	47
	44+2	1	700	5,21	3,56	8,35	2,8	5,6	13	39	30
		3	1200	7,85	5,72	12,75	5,9	12	32	48	39
		5	1800	10,34	7,78	17,2	9,9	20,6	81	56	47
	54+2	1	1450	9,74	7,09	15,42	6	9,6	42	48	39
		3	2525	14,22	11,06	23,1	12	19,9	152	61	52
		5	3485	17,22	13,78	28,66	17,4	29,5	363	70	61
	64+2	1	1700	12,02	8,61	16,34	8,5	10,6	29	47,5	38,5
		3	2870	17,45	13,38	23,65	16,8	20,8	98	60	53
		5	3925	21,26	16,97	29,13	24,3	30,4	227	70	61
	66+2	1	1685	13,72	9,38	16,22	10,4	10,5	30	47,5	38,5
		3	2845	20,61	14,87	23,53	21,8	20,6	103	62	53
		5	3900	25,72	19,11	29,03	32,9	30,2	233	70	61

MEASUREMENT CONDITIONS /// Cooling: ambient temperature +27/+19°C d.b./w.b., water parameters +7/+12°C E.W.T./L.W.T. /// Heating: ambient temperature +20°C, water parameters +70/+60°C E.W.T./L.W.T.
/// The sound pressure level is 9 dB(A) lower than the sound power level in a reverberation room of 100 m3 with a reverberation time of 0.5 s.

V – Airflow rate [m3/h]
Qch – Total cooling capacity [kW]
Qchj – Sensible cooling capacity [kW]
Qg – Heating capacity [kW]
Δpch – Cooling pressure drop [kPa]
Δg – Heating pressure drop [kPa]
Nel – Electric power input [W]
Lw – Sound power level outlet [dB(A)]
Lp – Sound pressure level outlet [dB(A)]
