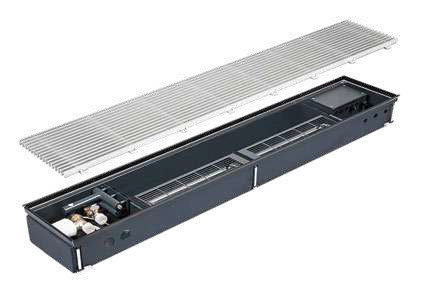

The CARISMA CSP-ECM floor-mounted fan coil unit combines innovation, aesthetics and functionality in air-conditioning systems.



Carisma Floor CSP ECM are modern floor-mounted fan coil units that combine innovative design with high functionality, providing effective heating and ventilation of interiors. They are ideal for buildings with large glazed surfaces such as homes, verandas, offices, public buildings as well as exhibition and commercial spaces.

  • 2-year warranty
  • 2-pipe models
  • EC motors with smooth 0–10 V control, energy-efficient and quiet
  • Highest quality and durability of materials
Floor-mounted Carisma series fan coil, 2-pipe – heating
  • Nominal heating capacity: 1 411 ÷ 7008 W (E.A.T. +20℃)
  • Durable galvanized steel casing, powder-coated RAL 7016.
  • Wide range of individual and central control options installed in the floor
  • Grilles available in various materials and colours
  • Wired and wireless control
  • Group control of devices
  • Operation within the SabiaNet system
  • Low energy consumption thanks to the ECM motor
  • Low noise level
  • Easy installation
CONTROLS


FOR CSP ECM 2T MODELS /// T-MB2+MB-CFP-ECM-B20 • PSM-DI+MB-CFP-ECM-B20
T-DI+MB-CFP-ECM-B20 • SABWEB+MB-CFP-ECM-B20 • T2+MB-CFP-ECM-B20 • SABIANET • KNX



FOR CPP-ECM 2T, 4T MODELS /// TAD • KNX-M • KNX-S • STAR • LPR • LCF • SPR (requires RTR)

Technical specifications
MODEL CSP ECM (2-pipe) L H T U QV Qg ΔTm 50,0 K – 75/65°C  Qg  ΔTm 30,0 K – 55/45°C  Qg ΔTm 22,5 K – 45/40°C   Lw Lp (*)  M
mm mm mm V m3/h W W W dB(A) dB(A) kg
2T 1000 110 192 10 220 1441 859 713 50 41 14,78
130 217 10 315 2049 1222 1014 53 44 16,67
2T 1200 110 192 10 295 1889 1127 935 52 43 17,24
130 217 10 385 2678 1597 1325 55 46 19,4
2T 1400 110 192 10 365 2574 1535 1274 53 44 20,08
130 217 10 435 3119 1860 1544 55 46 22,61
2T 1600 110 192 10 430 2935 1750 1453 53 44 22,71
130 217 10 485 3761 2243 1861 55 46 25,62
2T 1800 110 192 10 515 3557 2121 1760 54 45 25,88
130 217 10 710 5094 3038 2521 56 47 29,18
2T 2000 110 192 10 590 3941 2350 1950 55 46 28,33
130 217 10 770 5619 3351 2781 56 47 32
2T 2200 110 192 10 660 4679 2791 2316 55 46 31,25
130 217 10 820 5966 3558 2953 56 47 35,3
2T 2400 110 192 10 730 5030 3000 2489 55 46 33,75
130 217 10 885 6365 3796 3150 57 48 38,17
2T 2600 110 192 10 795 5530 3298 2737 56 47 36,55
130 217 10 920 6447 3845 3191 57 48 41,34
2T 2800 110 192 10 855 5788 3452 2865 56 47 39,06
130 217 10 965 6784 4046 3358 57 48 44,22
2T 3000 110 192 10 895 5936 3540 2938 56 47 41,37
130 217 10 995 7008 4180 3468 57 48 47,87

MEASUREMENT CONDITIONS /// Heating: ambient temperature +20°C
/// *The sound pressure level is 9 dB(A) lower than the sound power level under reverberation field conditions in a 100 m3 room with a reverberation time of 0.5 s.

L – Casing length [mm]
H – Casing height [mm]
T – Casing width [mm]
U – Voltage [V]
QV – Airflow rate [m3/h]
Qg – Heating capacity [W] / ΔTm 50 K – 75/65°C
Qg – Heating capacity [W] / ΔTm 30 K – 55/45°C
Qg – Heating capacity [W] / ΔTm 22.5 K – 45/40°C
Lw – Sound power level [dB(A)]
Lp – Sound pressure level Lp (*) [dB(A)]
M – Weight [kg]
