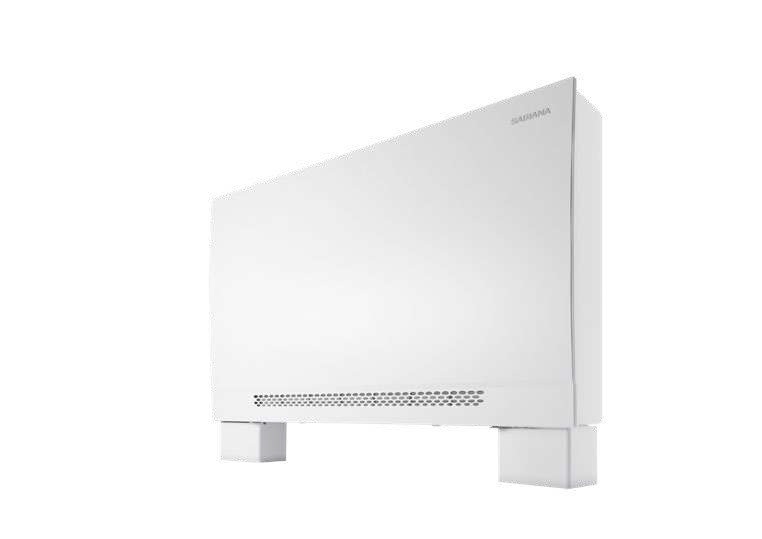

        Carisma Whisper CFF

        Klima-Therm by Sabiana
        Find out more about the brand
        Carisma Whisper CFF
        Choose accessories Choose accessories ArrowWhere to buy? Where to buy? ArrowAir conditioning configurator Air conditioning configurator Arrow

        Air conditioning configurator

        close
        Air conditioning configurator

        The Carisma Whisper CFF fan coil unit combines reduced dimensions with modern aesthetics while maintaining excellent performance in terms of sound and energy consumption. It perfectly meets all air-conditioning requirements in residential and work environments such as offices, shops, restaurants and hotel rooms.



        Carisma Whisper CFF is available in the MV version (with casing) and the IV version (for built-in installation) – both versions are wall-mounted and perfectly match any type of interior design.

        Outer casing: made of galvanized steel with an external plastic cover (white colour: RAL 9003). The air diffuser, located at the top of the unit, is of the adjustable type. Standard hydraulic connections are located only on the left side. Hydraulic connection on the right side is not possible.

        For the IV version, the Breeze grille is available.



        • Wide range of individual and central control options
        • 2-year warranty
        • High-efficiency cross-flow fan
        • Highest material quality and durability
        • Lowest noise levels
        Two-pipe fan coil unit with a tangential fan and an asynchronous motor
        • Nominal cooling capacity: 0.41 ÷ 2.79 kW (E.A.T.+27℃/E.W.T. +7℃)
        • Nominal heating capacity: 0.51 ÷ 2.96 kW (E.A.T. +20℃/E.W.T.+50℃)
        • Slim casing
        • Cross-flow fans
        • Wired and wireless control
        • Group control of units
        • Operation in SabiaNet system
        CONTROLS


        FOR MODELS MV, IV /// WM-3V • WM-T
        FOR MODELS WITH MB OPTION /// MB-CF-M • MB-CF-S • T-MB2 • PSM-DI • T-DI • SABWEB • SABIANET



        Technical specifications
        MODEL Speed V Qch Qchj Qg Δpg Δpch Nel Lw Lp
            m3/h kW kW kW kPa kPa kW dB(A) dB(A)
         CFF 10 min. 75 0,41 0,3 0,51 3,7 4,5 10 35 26
        med. 126 0,52 0,48 0,76 7,8 9,2 15 43 34
        max. 165 0,8 0,64 0,94 12,6 13,3 31 49 40
        CFF 20 min. 151 0,85 0,63 1,05 2,8 3,1 12 36 27
        med. 210 1,15 0,88 1,34 4,9 4,8 18 44 35
        max. 280 1,45 1,14 1,69 7,5 7,3 34 50 41
          CFF 30 min. 180 1,14 0,82 1,34 4,7 5 14 37 28
        med. 290 1,74 1,27 1,96 10 10 20 45 36
        max. 378 2,18 1,62 2,44 15,3 14,7 39 52 43
        CFF 40 min. 230 1,51 1,07 1,72 9,6 9,7 14 34 25
        med. 325 2,11 1,51 2,26 17,5 15,9 22 42 33
        max. 450 2,79 2,02 2,96 29,2 25,9 44 50 41

        MEASUREMENT CONDITIONS /// Cooling: ambient temperature +27/+19℃ d.b/w.b, water parameters +7/+12℃ E.W.T/L.W.T /// Heating: ambient temperature +20℃, water parameters +50℃ E.W.T
        /// The sound pressure level is 9 dB(A) lower than the sound power level under reverberation field conditions in a 100 m3 room with a reverberation time of 0.5 s.

        V- Airflow rate [m3/h]
        Qch- Total cooling capacity [kW], Qchj- Sensible cooling capacity [kW], Qg- Heating capacity [kW]
        Nel - power input [kW]
        Δpch- Cooling pressure drop [kPa], Δpg- Heating pressure drop [kPa]
        Lp- Sound pressure level cooling [dB(A)], Lw- Sound power level cooling [dB(A)]
