Air conditioning configurator

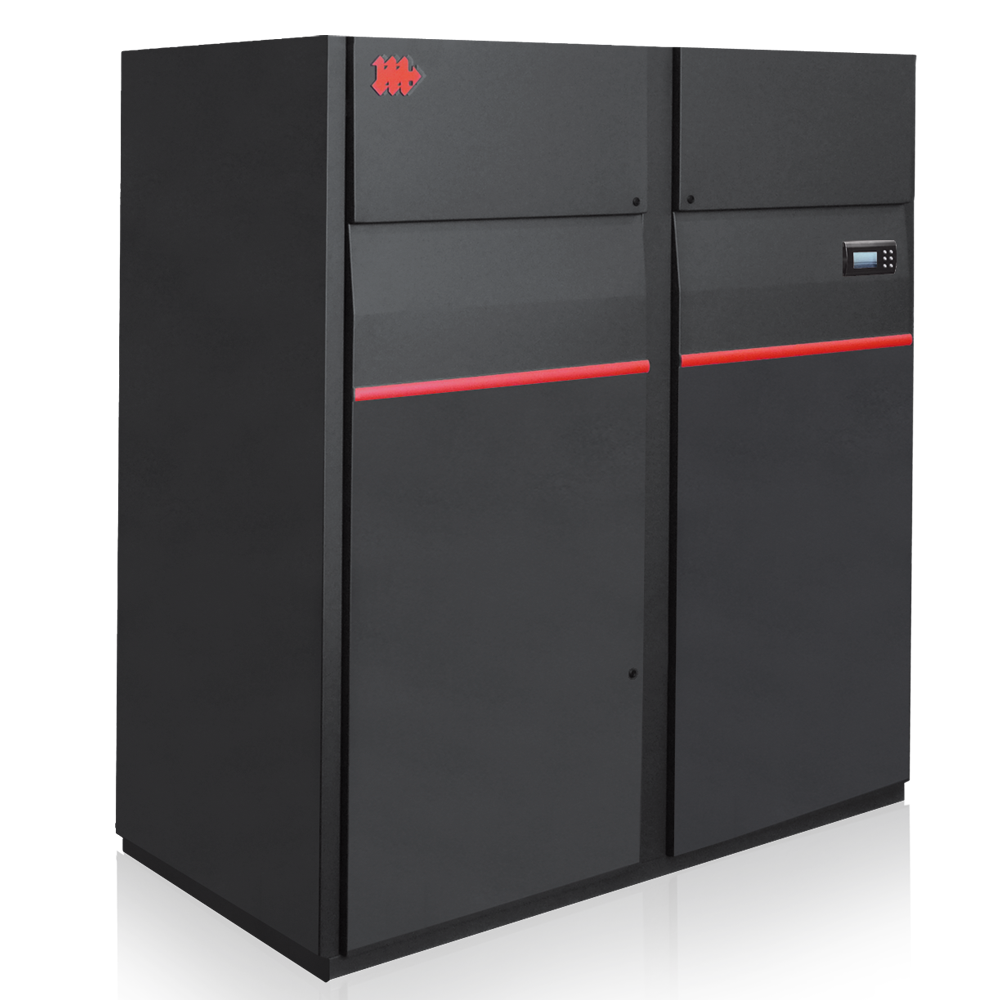

The WOP line of precision air conditioners is the most advanced solution for technological applications in facilities such as: server farms, power amplifier rooms of UMTS and GSM transmitters, NOCs (Network Operations Centre), cooling of computer racks, control rooms, power supply devices, and practically anywhere where heat loads are extremely high.



These units are characterised by the use of a water cooler as the primary and only heat exchanger.

  • Innovative design
  • Compact units
  • EC type "Plug-Fan"
  • Simple maintenance
  • Low noise operation
CHILLED WATER UNITS with EC Inverter Plug-Fans
  • Rated cooling capacity: 8,6 / 155 kW
  • Rated heating capacity: 3,5 / 31 kW
  • The capacity of the humidifier: 4 / 15 kg/h
  • Suitable for operation at outdoor temperatures up to 52?C
  • Self-supporting frame, internal elements of the housing made of galvanized steel sheet.
  • From the inside the casing has thermal and acoustic insulation with the fire resistance class A1.
  • Access to all components is possible from the front of the unit through hinged doors.
  • Three-phase hermetic Scroll type compressor equipped with brushless DC engine, inverter controlled.
  • In devices with two cooling circuits, in the event of a fault in one of the systems, operation of the unit with 50% cooling capacity is guaranteed.
  • 60% lower energy consumption by supply elements.
  • Higher efficiency even at partial load.
  • The fan speed can be adjusted and modified using the microprocessor, without interrupting the device
  • It is possible to adjust the air flow to the required pressure.
  • Filters in high class M5 filtration are made of latex and fibers with high filtering ability.
  • Constructions of heat exchangers guarantee a high level of heat exchange and low air pressure drops.
  • Differential pressure sensor for fan speed and filter contamination control.
  • AP, HT, DPS, AR, AT, AT/P, PF, EH, WS, UMI, SA, IS, IS/B, IS/BT, ISL, WM, MP, MP/U, FF, FM, CR, ZP, ZA, DL, BA, BM, DM, BV
Technical specifications

Model



Wydajność

Chłodnicza

kW

Pobór mocy

kW

Zasilanie

V/Ph/Hz

Wymiary

HxWxD

Masa

kg

0009

8,6

0,2



230 / 1 / 50

1980x675x675

206

0013

13,1

0,4

1980x675x675

209

0018

17,6

0,6





















400/3+N/50

1980x675x675

215

0022

21,7

0,7

1980x675x675

221

0027

27,5

1,2

1980x875x675

259

0031

31,4

1,2

1980x875x675

264

0036

35,9

2,2

1980x1350x890

385

0048

47,7

2,3

1980x1350x890

397

0057

56,6

2,4

1980x1350x890

407

0063

63,4

2,6

1980x1350x890

417

0069

69,3

2,7

1980x1350x890

429

0079

79,1

2,9

1980x1750x890

508

0089

88,9

3,1

1980x1750x890

522

0097

96,8

3,3

1980x2225x890

537

0104

104

4,3

1980x2225x890

594

0117

117

4,6

1980x2625x890

637

0128

128

4,8

1980x2625x890

655

0142

142

5,5

1980x2625x890

734

0155

155

5,9

1980x2625x890

755



Temperatura otoczenia 24 °C - R.H. 50%; Temperatura skraplania 45 °C.

Temperatura wody 7°C / 12°C

Ciśnienie dźwięku mierzone w wolnej przestrzeni, w odległości 2 m od urządzenia (ISO 3744), z kanałami podłączonymi na wylocie i wlocie powietrza (z wyjątkiem wlotu w wersji z wlotem OD GÓRY).
