Thanks to the technologies used, in addition to its basic functions, which ensure comfort of use, the unit has a series of other functions, such as central control or BMS master control.
Indoor Unit Model |
Symbol |
Capacity Range [kW] |
||||
| Symbol - First Part | Symbol - Capacity | Symbol - Last Part | ||||
|

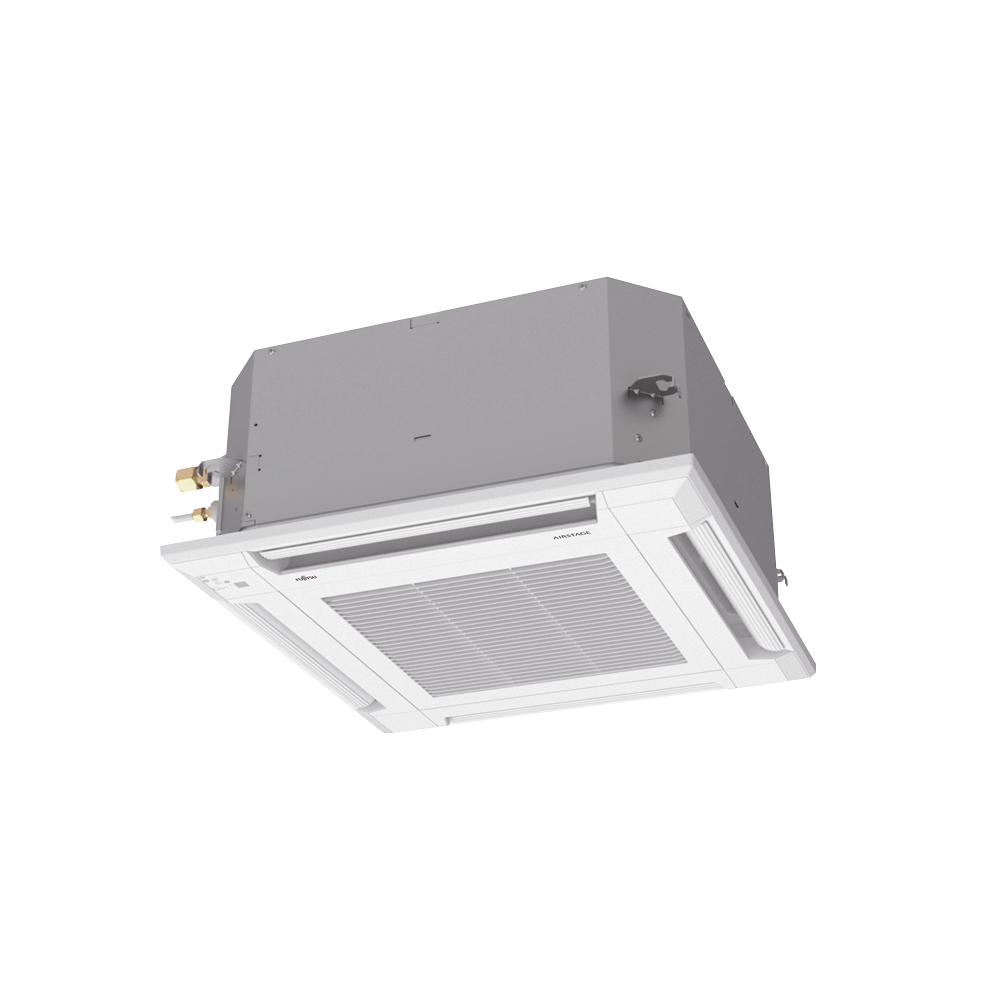

Cassette*
|
Compact | Compact 4-way flow | AUXB |
004 005 007 009 012 014 018 |
HLBH | 1,1 - 5,6 |
| Slim | Circular Flow | AUXM |
009 012 014 018 024 030 |
HLBH | 2,8 - 9,0 | |
| Large | Circular Flow | AUXK |
018 024 030 034 036 045 054 |
HLBH | 5,6 - 14 | |
| 1-way Flow | 1-way Flow | AUXV |
004 005 007 009 012 014 018 024 |
HLBH | 1,1 - 7,1 | |
|

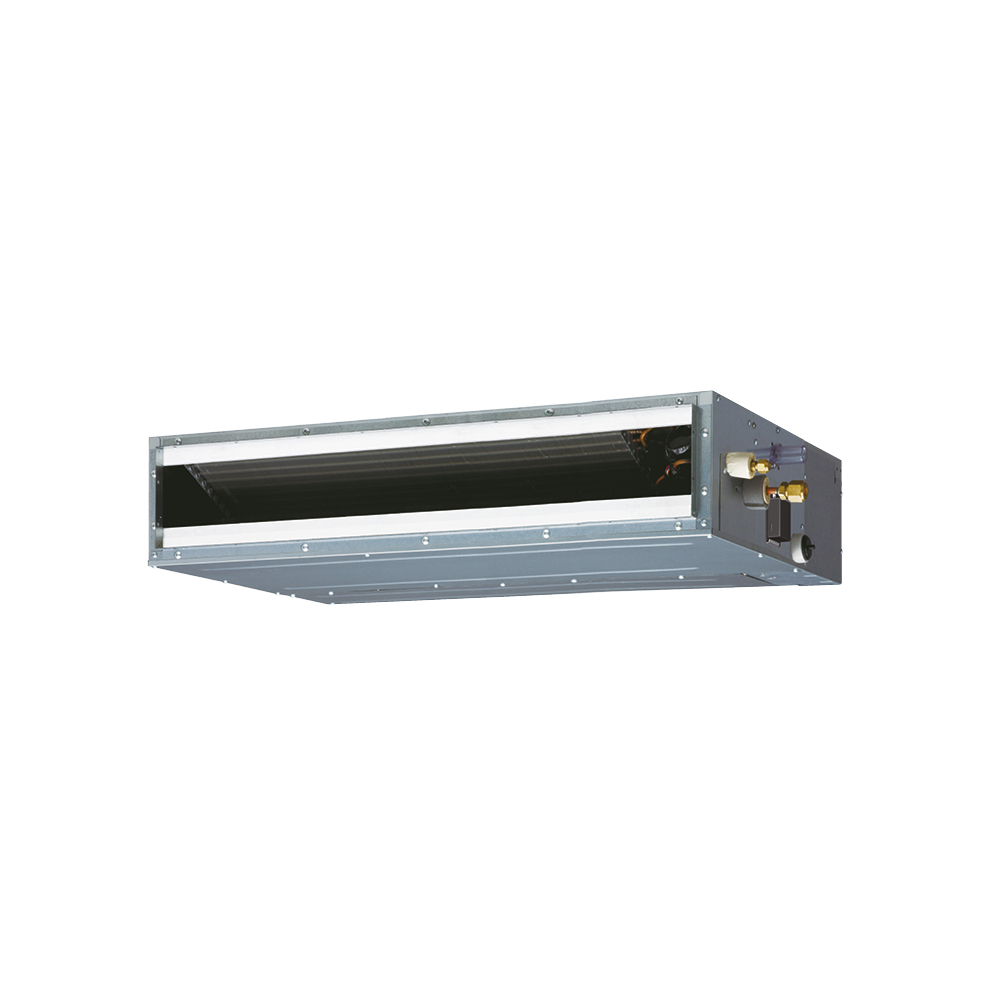

Duct*
|
Low Static Pressure | Mini (with drain pump) | ARXK |
004 005 007 009 012 014 018 024 |
HLBH | 1,1 - 7,1 |
| Slim (with drain pump) | ARXD |
004 005 007 009 012 014 018 024 |
HLBH | 1,1 - 7,1 | ||
Medium Static Pressure |
Normal | ARXL |
007 009 012 014 018 024 030 036 045 |
HBTH | 2,2 - 12,5 | |
High Static Pressure |
Normal | ARXC |
036 045 060 072 090 096 |
HBTH | 11,2 - 28,0 | |
|

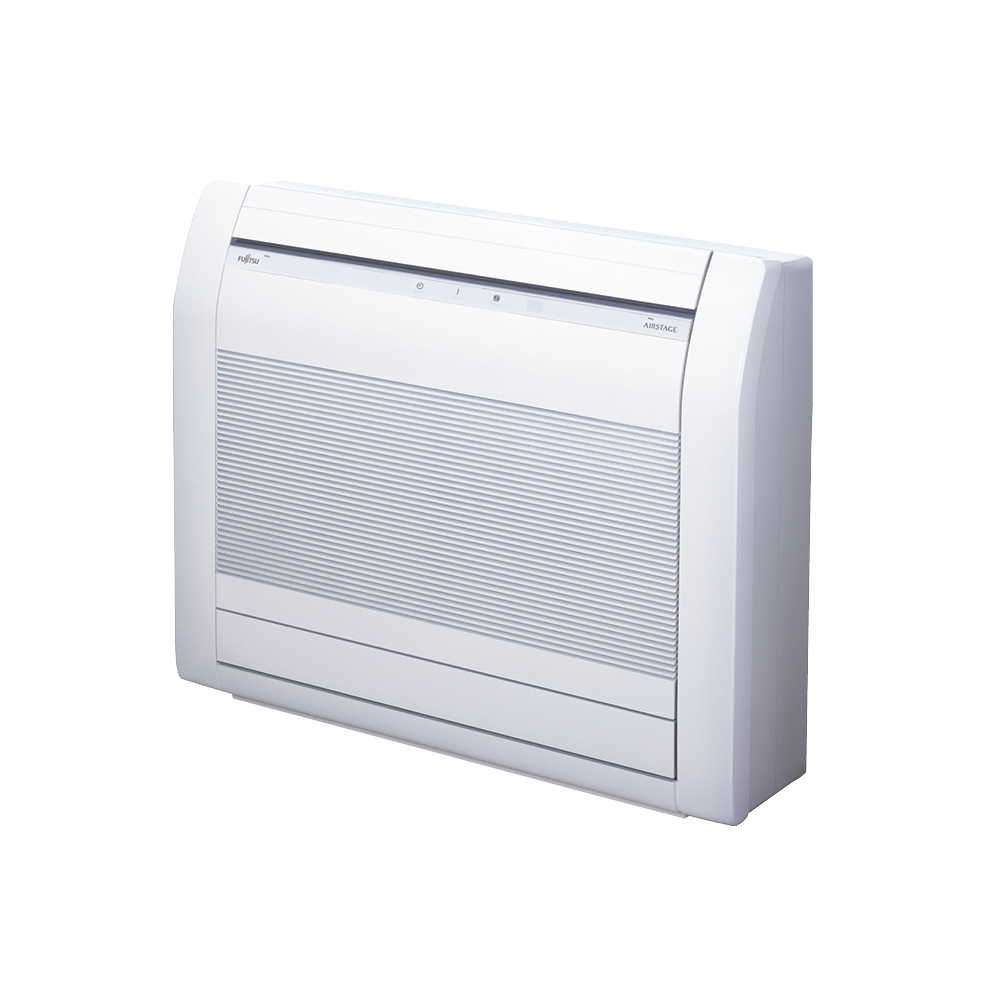

Floor*
|
Compact | AGYA |
007 009 012 014 |
HBCH | 2,2 - 4,0 | |
| Compact (external EEV) | AGYE |
007 009 012 014 |
HBCH | 2,2 - 4,0 | ||
|

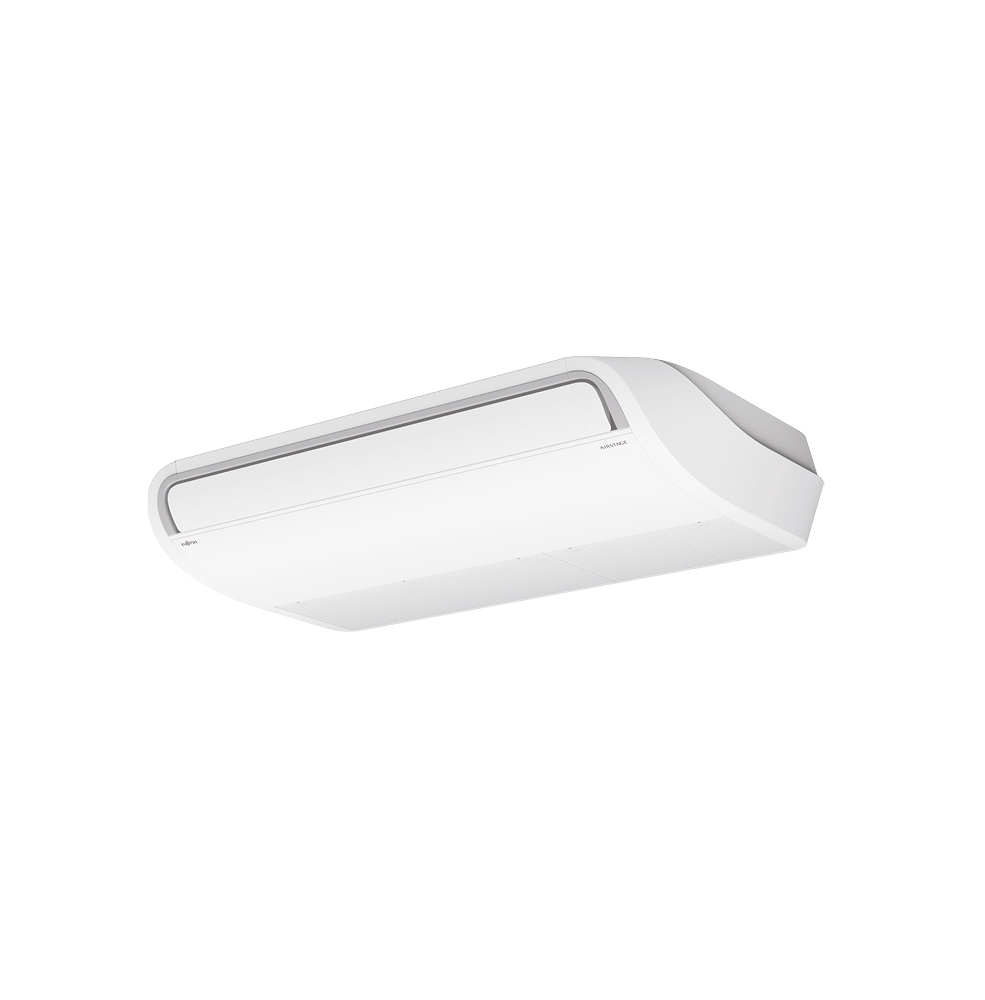

Ceiling*
|
ABYA |
012 014 018 024 030 036 045 054 |
HTBH | 3,6 - 14,0 | ||
|

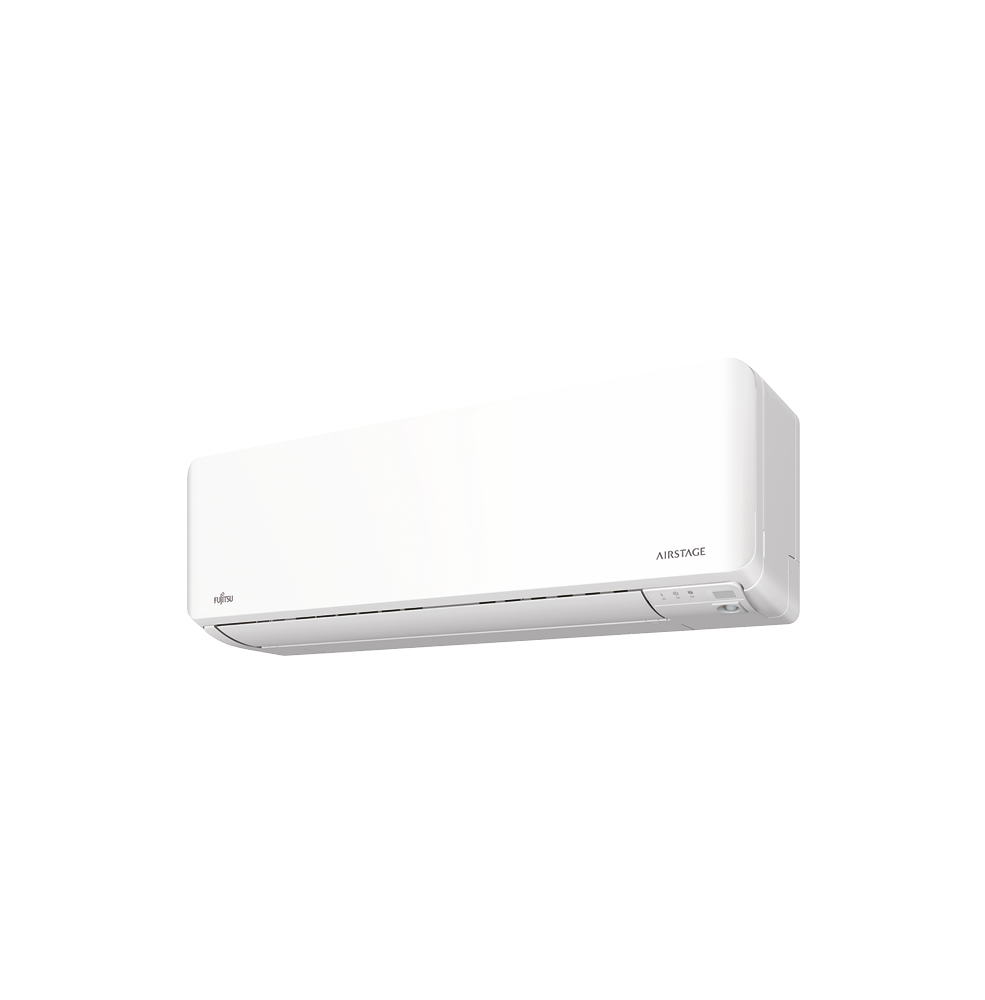

Wall-Mounted*
|
Wall-Mounted |
ASYA |
004 005 007 009 012 014 018 024 030 034 |
HTBH | 1,1 - 10,0 | |
| Wall-Mounted (external EEV) | ASYE |
004 005 007 009 012 014 018 |
HBTH | 1,1 - 5,6 | ||
|
Wall-Mounted**
|
Wall-Mounted |
ASYA |
004 005 007 009 012 014 |
HCAH | 1,1 - 4,0 | |
|
Wall-Mounted (external EEV) |
ASYE |
004 005 007 009 012 014 |
HCAH | 1,1 - 4,0 | ||
|
Duct**
|
Slim (with drain pump) |
ARXD |
004 005 007 009 012 014 018 024 |
HLAH | 1,1 - 7,1 | |
|
Cassette**
|
Compact Cassette |
AUXB |
004 005 007 009 012 014 018 |
HLAH | 1,1 - 5,6 | |
** Indoor units for the J-VS, J-V, and J-VL VRF R32 systems
* Indoor units for all R32 VRF systems
Images are for illustrative purposes only; the appearance of individual unit series will vary depending on the product series.
