Thanks to the technologies used, in addition to its basic functions and air temperature adjustment, which ensure comfort of use, the unit has a series of other functions, such as central control or BMS master control.
|

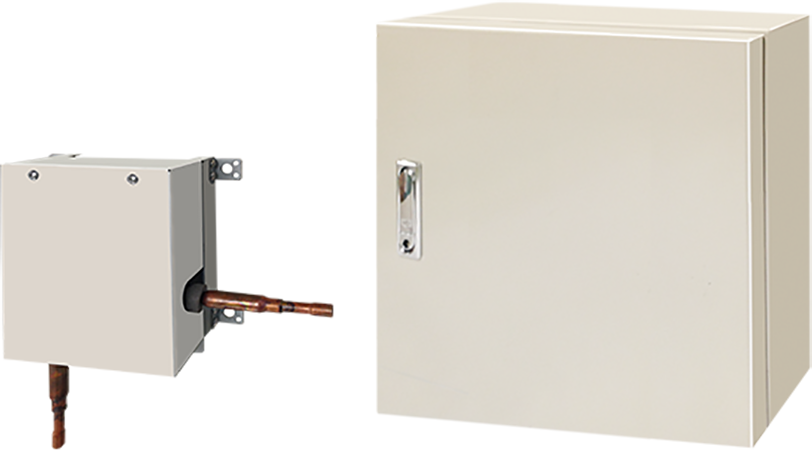

EEV unit / Control unit |
Capacity C / G |
Dimensions |
Weight |
Remarks |
|
|
kW |
mm |
kg |
|
|
UTP-VX30B UTY-VDGXZ3 |
5,6 / 6,3 |
160x220x90 400x400x120 |
2 10 |
|
|
UTP-VX30B UTY-VDGXZ3 |
6,3 / 7,1 |
160x220x90 400x400x120 |
2 10 |
|
|
UTP-VX30B UTY-VDGXZ3 |
8,0 / 9,0 |
160x220x90 400x400x120 |
2 10 |
|
|
UTP-VX60B UTY-VDGXZ3 |
10,0 /11,2 |
160x220x90 400x400x120 |
2 10 |
|
|
UTP-VX60B UTY-VDGXZ3 |
12,5 / 14,0 |
160x220x90 400x400x120 |
2 10 |
|
|
UTP-VX60B UTY-VDGXZ3 |
14,0 / 16,0 |
160x220x90 400x400x120 |
2 10 |
|
|
UTP-VX90B UTY-VDGXZ3 |
22,4 / 25,0 |
160x220x90 400x400x120 |
2 10 |
|
|
UTP-VX90B UTY-VDGXZ3 |
25,0 / 28,0 |
160x220x90 400x400x120 |
2 10 |
|
|
UTP-VX90B x 2 UTY-VDGXZ3 |
40,0 / 45,0 |
160x220x90 400x400x120 |
2 x 2 10 |
Separation tube required UTP-LX180A |
|
UTP-VX90B x 2 UTY-VDGXZ3 |
50,4 / 56,5 |
160x220x90 400x400x120 |
2 x 2 10 |
Separation tube required UTP-LX180A |
The DX-KIT module does not come with controllers as standard
Note: Specifications are based on the following conditions.
Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
Heating: Indoor temperature of 20°CDB/(15°CWB), and outdoor temperature of 7°CDB/6°CWB.
Pipe length: 7.5 m Voltage: 230 [V].
