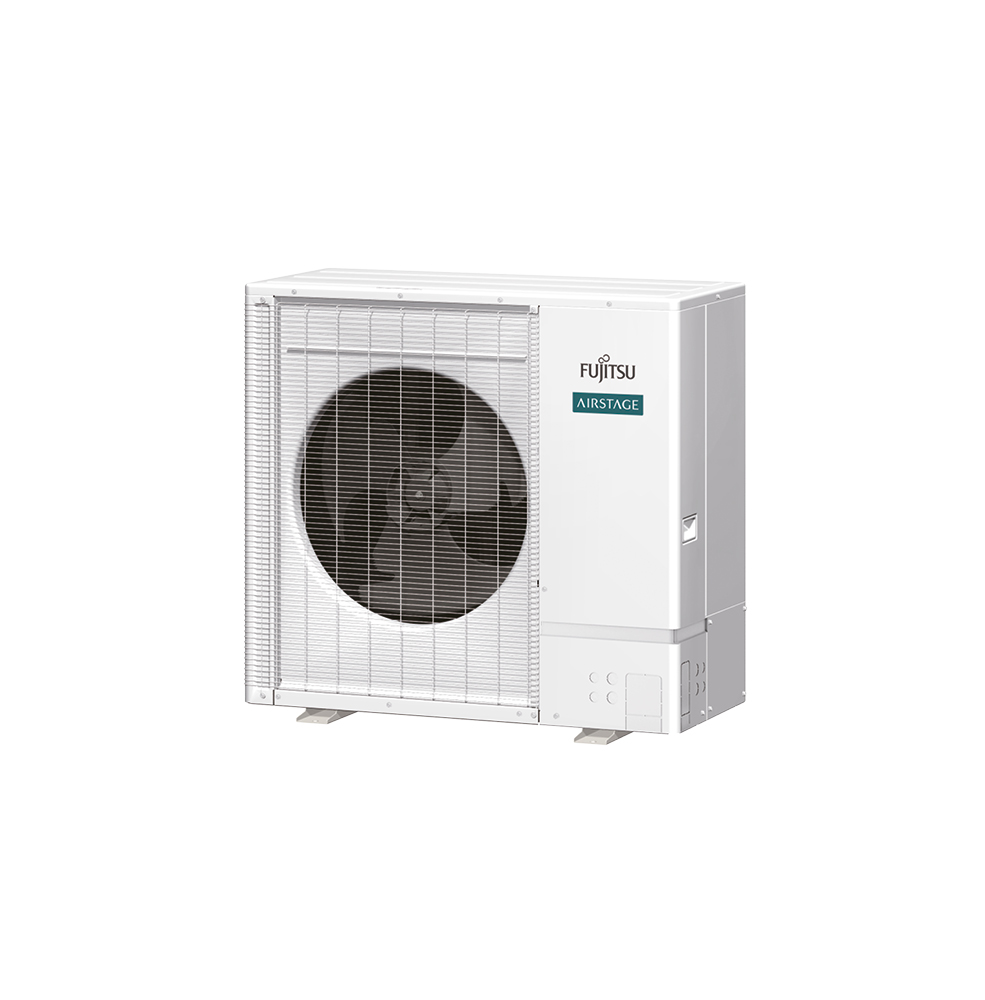

        Airstage J-V

        Fujitsu
        Find out more about the brand
        Airstage J-V
        Choose accessories Choose accessories ArrowWhere to buy? Where to buy? ArrowAir conditioning configurator Air conditioning configurator Arrow

        Air conditioning configurator

        close
        Air conditioning configurator

        VRF J-V are energy-efficient air conditioners designed for single-family houses, small offices and commercial facilities.



        Thanks to the technologies used, in addition to its basic functions, which ensure comfort of use, the air conditioner has a series of other functions, such as individual temperature control in each room and central control.

        • 6-year warranty
        • One outdoor unit max. 14 indoor units
        • Wi-Fi communication
        • Quiet operation
        • Individual temperature control for each indoor unit
        • Long piping length
        • Built-in valve to shut off the refrigeration system in the event of a refrigerant leak
        VRF Airstage system, J-V, mini VRF
        • Rated cooling capacity: 12,1÷15,5 kW
        • Rated heating capacity: 13,6÷18,0 kW
        • Number of indoor units drom 1 to 14
        • Co-operation with AHU's cooling modules
        • Capacity ratio 50-150%
        • Piping length from first separation tube to the furthest indoor unit: 300 m
        • The longest pipe in a system: 120 m
        • Height difference between indoor and outdoor units: 50 m
        • Refrigerant: R32
        • High SEER / SCOP coefficients
        • Wide range of operating temperatures, cooling and heating capacity
        • Recommended operating temperature in cooling mode: -5÷52°C
        • Recommended operating temperature in heating mode: -20÷21°C
        • Indoor units,  control and monitoring software compatible with all AIRSTAGE VRF systems
        • Automatic addressing of devices in the system
        • Work mode: auto, cooling, heating, drying, ventilation
        • The possibility of cooling or heating the object
        • Air-flow rate adjustment with use of the controller
        • Compact and slim outdoor units
        • Low noise operation of outdoor unit
        • High system reliability
        • Any configuration of types and nominal powers  indoor units from 1,1 to 14 kW
        • Flexibility in design and installation
        • The ability to control indoor units with wireless or wired remote control and central controllers
        • Simple and fast installation thanks to finished parts of the refrigeration system
        • Control options: individual, group and central
        • Ability to connect to BMS (LonWORKS, BacNet, Modbus, KNX)
        • Control and service software
        • Remote monitoring
        • Certifications: EUROVENT
        Technical specifications



        Indoor/outdoor unit model

        Number of indoor units

        SEER

        SCOP

        Capacity

        C/H

        Input Power

        C/H

        Power Source

        Dimensions

        Weight

        Refrigerant Charge







        kW

        kW

        V/pH/Hz

        mm

        kg

        kg (CO2eq-T)

        AJY040KBLAH

        11

        7,25

        4,50

        12,1

        13,6

        3,25

        2,67

        230/1/50

        1008x1080x480

        117

        4,0 (2,7)

        AJY045KBLAH

        12

        7,82

        4,73

        14,0

        16,0

        4,02

        2,97

        230/1/50

        1008x1080x480

        117

        4,0 (2,7)

        AJY054KBLAH

        14

        7,60

        4,71

        15,5

        18,0

        4,70

        3,48

        230/1/50

        1008x1080x480

        117

        4,0 (2,7)

        AJY040KELAH

        11

        7,25

        4,50

        12,1

        13,6

        3,25

        2,67

        400/3/50

        1008x1080x480

        118

        4,0 (2,7)

        AJY045KELAH

        12

        7,82

        4,73

        14,0

        16,0

        4,02

        2,97

        400/3/50

        1008x1080x480

        118

        4,0 (2,7)

        AJY054KELAH

        14

        7,60

        4,71

        15,5

        18,0

        4,70

        3,48

        400/3/50

        1008x1080x480

        118

        4,0 (2,7)



        Dane techniczne dotyczą wybranych modeli z oferty Klima-Therm. Producent stale udoskonala swoje wyroby – aby zweryfikować dane proszę skontaktować się z Autoryzowanym Dealerem. C - chłodzenie, G - grzanie, parametry przepływu powietrza podano dla najwyższej prędkości wentylatora. Nominalna wydajność chłodzenia i grzania wyznaczana jest dla następujących parametrów: tryb chłodzenia temp wew: 27 CDB / 19 CWB, temp zew: 35 CDB / 24 CWB oraz tryb grzania: temp wew: 20 CDB / 15 CWB, temp zew: 7 CDB / 6 CWB. Długość instalacji 7,5 m, przewyższenie 0 m
